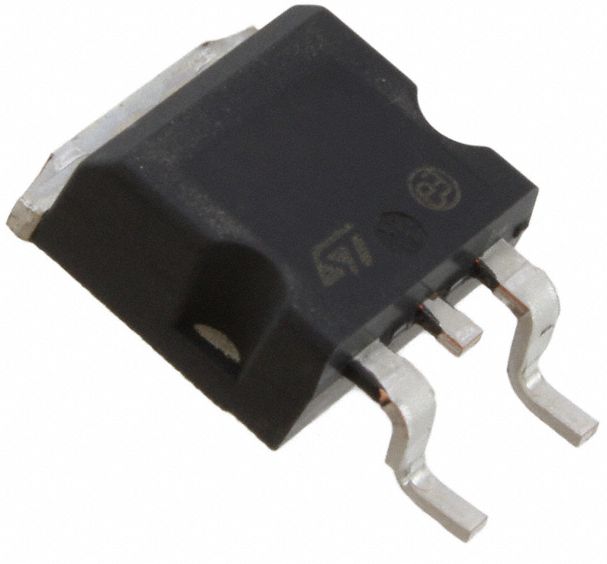

80V,1.7mΩ,180A,N沟道功率MOSFET
N-Channel 80V 180A Tc 315W Tc Surface Mount H²PAK
得捷:
MOSFET N-CH 80V 180A H2PAK
艾睿:
This STH270N8F7-6 power MOSFET from STMicroelectronics can be used for amplification in your circuit. Its maximum power dissipation is 315000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with stripfet technology. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 175 °C. This N channel MOSFET transistor operates in enhancement mode.
安富利:
Trans MOSFET N-CH 80V 180A 3-Pin H2PAK T/R
Verical:
Trans MOSFET N-CH 80V 180A 7-Pin6+Tab H2PAK T/R
力源芯城:
80V,1.7mΩ,180A,N沟道功率MOSFET
极性 N-CH
耗散功率 315 W
阈值电压 2 V
输入电容 13600 pF
漏源极电压Vds 80 V
连续漏极电流Ids 180A
上升时间 180 ns
输入电容Ciss 13600pF @50VVds
下降时间 42 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 315W Tc
安装方式 Surface Mount
引脚数 7
封装 TO-263-7
封装 TO-263-7
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
