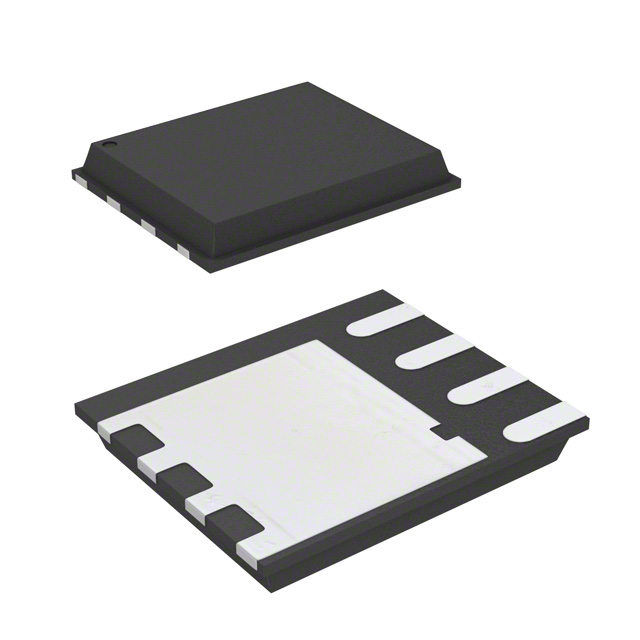

Trans MOSFET N-CH 150V 25A 8Pin Power Flat T/R
In addition to amplifying electronic signals, you"ll be able to switch between various lines with the power MOSFET, developed by STMicroelectronics. Its maximum power dissipation is 80000 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.
耗散功率 80 W
漏源极电压Vds 150 V
上升时间 5.1 ns
输入电容Ciss 2710pF @25VVds
额定功率Max 80 W
下降时间 11.4 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 80W Tc
安装方式 Surface Mount
引脚数 8
封装 PowerVDFN-8
封装 PowerVDFN-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STL25N15F4 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STL90N3LLH6 意法半导体 | 类似代替 | STL25N15F4和STL90N3LLH6的区别 |
STL25N15F3 意法半导体 | 功能相似 | STL25N15F4和STL25N15F3的区别 |
