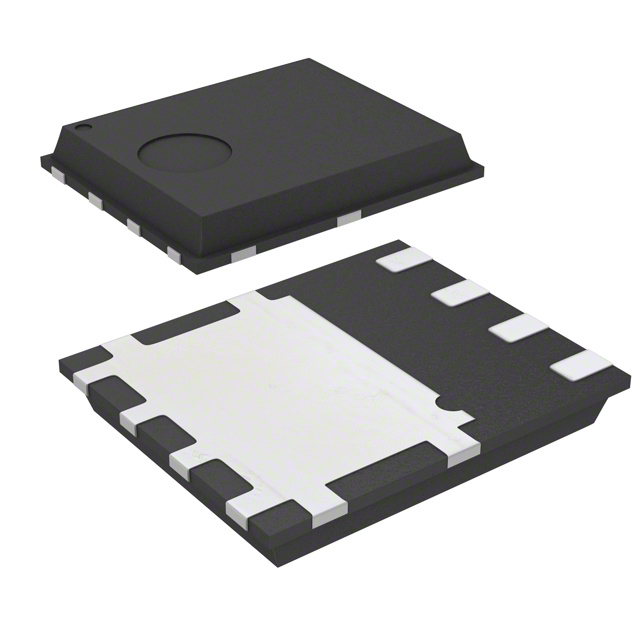

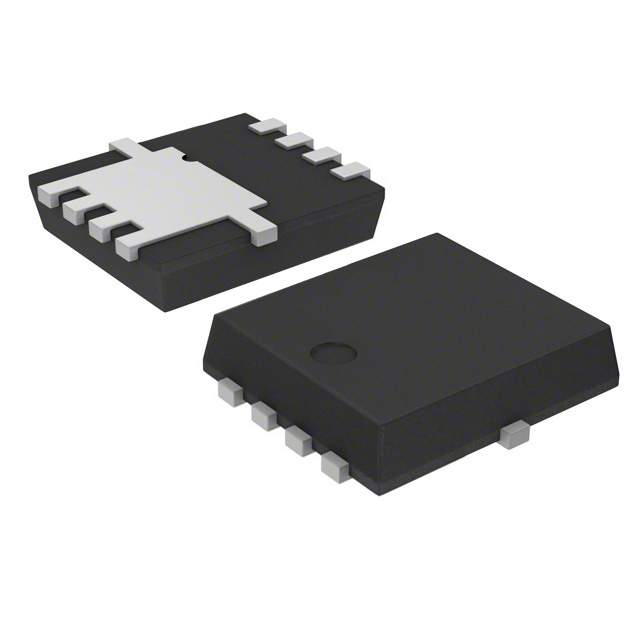

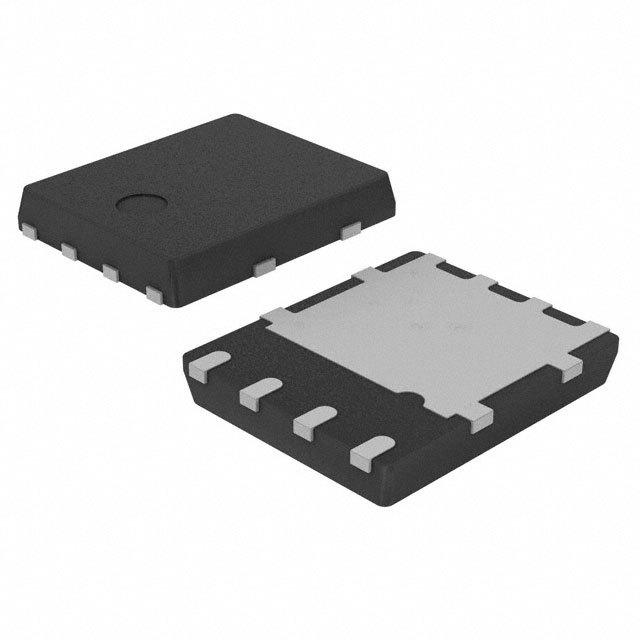

Power N-CH 30V 51A
表面贴装型 N 通道 51A（Tc） 62.5W（Tc） PowerFlat™（5x6）
得捷:
MOSFET N-CH 30V 51A POWERFLAT
艾睿:
Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? STMicroelectronics&s; STL51N3LLH5 power MOSFET can provide a solution. Its maximum power dissipation is 62500 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes stripfet technology. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This N channel MOSFET transistor operates in enhancement mode.
安富利:
Trans MOSFET N-CH 30V 51A 8-Pin Power Flat T/R
富昌:
STL51N3LLH5 系列 30 V 14.5 mOhm N 沟道 STripFET™ V 功率 Mosfet - PowerFLAT
Chip1Stop:
Trans MOSFET N-CH 30V 51A 8-Pin Power Flat EP T/R
Verical:
Trans MOSFET N-CH 30V 51A 8-Pin Power Flat EP T/R
DeviceMart:
MOSFET N-CH 30V 51A POWERFLAT56
Win Source:
MOSFET N-CH 30V 51A POWERFLAT56
极性 N-CH
耗散功率 62.5 W
漏源极电压Vds 30 V
连续漏极电流Ids 51A
上升时间 4.2 ns
输入电容Ciss 724pF @25VVds
额定功率Max 62.5 W
下降时间 3.5 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 62.5W Tc
安装方式 Surface Mount
引脚数 8
封装 PowerSMD-8
封装 PowerSMD-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
