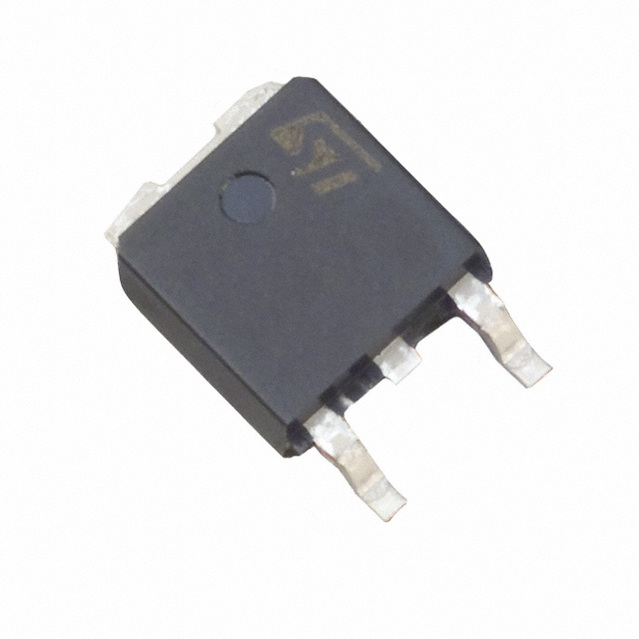

N沟道30V - 0.038Ω - 17A - DPAK封装的STripFET ™II功率MOSFET N-channel 30V - 0.038Ω - 17A - DPAK STripFET™ II Power MOSFET
表面贴装型 N 通道 30 V 17A（Tc） 30W（Tc） DPAK
得捷:
MOSFET N-CH 30V 17A DPAK
贸泽:
MOSFET N Ch 500V 0.40 11A Pwr MOSFET
艾睿:
Thanks to STMicroelectronics, both your amplification and switching needs can be taken care of with one component: the STD18NF03L power MOSFET. Its maximum power dissipation is 30000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 175 °C. This N channel MOSFET transistor operates in enhancement mode.
安富利:
Trans MOSFET N-CH 30V 17A 3-Pin2+Tab DPAK T/R
富昌:
N-Channel 30 V 50 mΩ 4.8 nC SMT STripFET™ II Power Mosfet - TO-252
Chip1Stop:
Trans MOSFET N-CH 30V 17A Automotive 3-Pin2+Tab DPAK T/R
Verical:
Trans MOSFET N-CH 30V 17A Automotive 3-Pin2+Tab DPAK T/R
力源芯城:
30V,0.038Ω,17A,N沟道功率MOSFET
DeviceMart:
MOSFET N-CH 30V 17A DPAK
Win Source:
MOSFET N-CH 30V 17A DPAK
耗散功率 30 W
漏源极电压Vds 30 V
上升时间 100 ns
输入电容Ciss 320pF @25VVds
额定功率Max 30 W
下降时间 22 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 30W Tc
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
