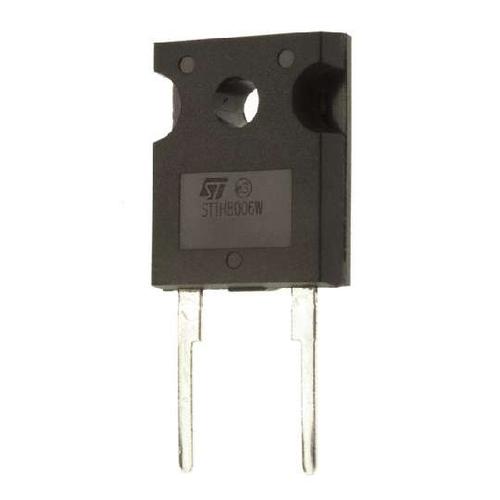

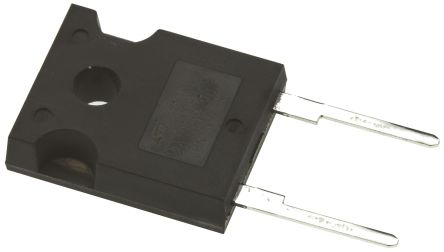

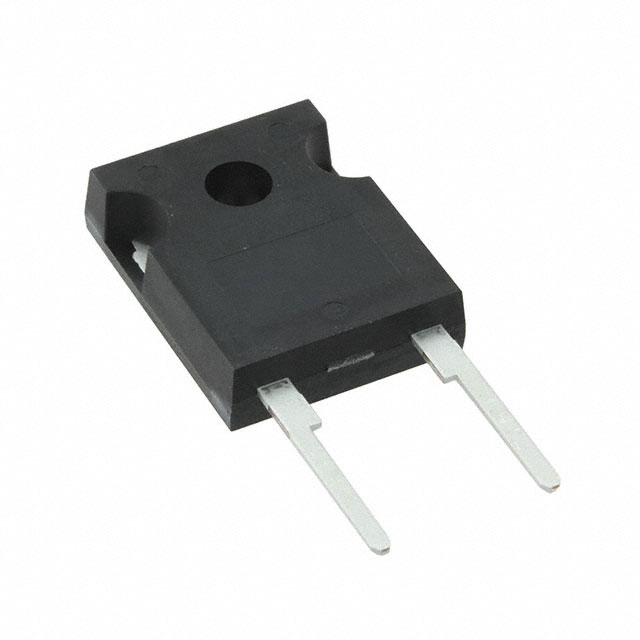

STMICROELECTRONICS STTH6004W 快速/超快二极管, 单, 400 V, 60 A, 830 mV, 50 ns, 600 A
整流器,10A 至 240A,STMicroelectronics
得捷:
DIODE GEN PURP 400V 60A DO247
欧时:
STMicroelectronics 二极管 STTH6004W 开关, Io=60A, Vrev=400V, 90ns, 2引脚 DO-247封装
立创商城:
400V 60A 1.2V@60A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode STTH6004W rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its peak non-repetitive surge current is 600 A, while its maximum continuous forward current is 60 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C.
Jameco:
Diode Ultra Fast Recovery Rectifier 400 Volt 60A 2-Pin DO-247 Tube
安富利:
Diode Switching 400V 60A 2-Pin DO-247 Tube
富昌:
DO 247
Chip1Stop:
Diode Switching 400V 60A 2-Pin DO-247 Tube
Verical:
Rectifier Diode Switching 400V 60A 90ns 2-Pin DO-247 Tube
Newark:
# STMICROELECTRONICS STTH6004W Fast / Ultrafast Diode, 400 V, 60 A, Single, 830 mV, 50 ns, 600 A
额定电压DC 400 V
额定电流 60.0 A
输出电流 ≤60.0 A
正向电压 1.2V @60A
极性 Standard
热阻 0.7 ℃/W
反向恢复时间 90 ns
正向电流 60 A
最大正向浪涌电流(Ifsm) 600 A
正向电压Max 830 mV
正向电流Max 60 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 DO-247-2
长度 15.75 mm
宽度 5.15 mm
高度 20.15 mm
封装 DO-247-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH6004W ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH6012W 意法半导体 | 类似代替 | STTH6004W和STTH6012W的区别 |
STTH60L06W 意法半导体 | 类似代替 | STTH6004W和STTH60L06W的区别 |
STTH2006W 意法半导体 | 类似代替 | STTH6004W和STTH2006W的区别 |
