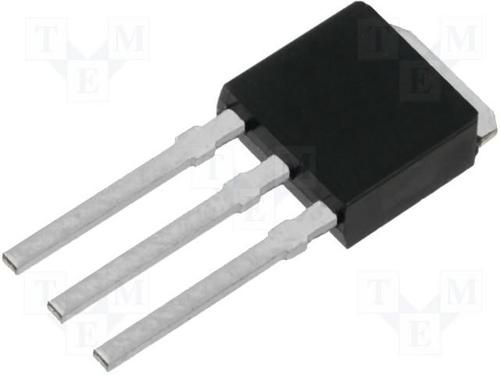

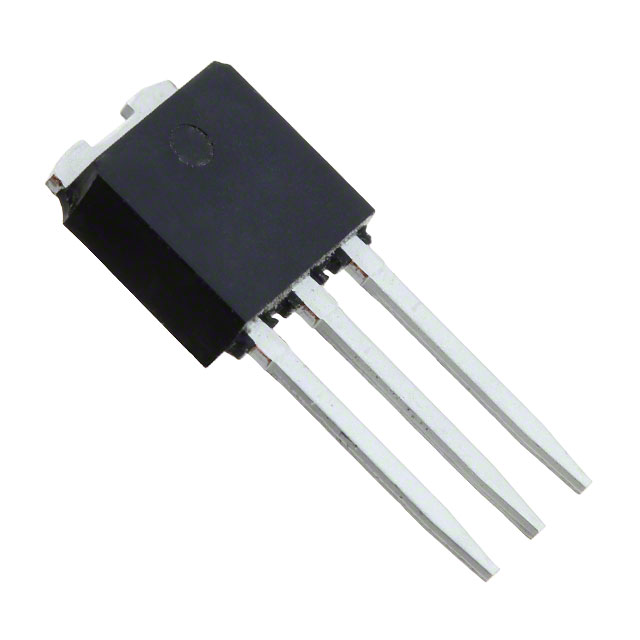

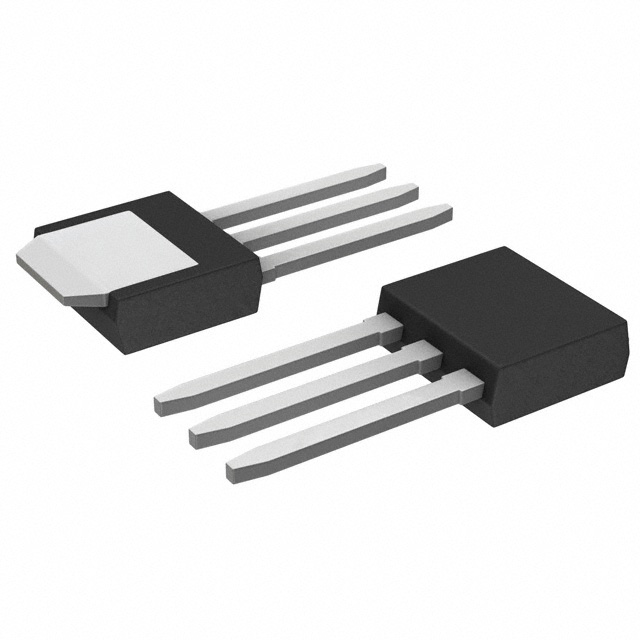

STMICROELECTRONICS STD4NK50Z-1 晶体管, MOSFET, N沟道, 1.5 A, 500 V, 2.3 ohm, 10 V, 3.75 V
The is a SuperMESH™ N-channel Zener-protected Power MOSFET obtained through an extreme optimization of ST"s well established strip-based PowerMESH™ layout. In addition to pushing ON-resistance significantly down, special care is taken to ensure a very good dV/dt capability for the most demanding applications.
- .
- 2.3R RDS ON
- .
- Extremely high dV/dt capability
- .
- 100% Avalanche tested
- .
- Gate charge minimized
- .
- Very low intrinsic capacitances
- .
- Very good manufacturing repeatability
- .
- -55 to 150°C Operating junction temperature range
额定功率 45 W
通道数 1
针脚数 3
漏源极电阻 2.3 Ω
极性 N-Channel
耗散功率 45 W
阈值电压 3.75 V
漏源极电压Vds 500 V
连续漏极电流Ids 1.50 A
上升时间 7 ns
输入电容Ciss 310pF @25VVds
额定功率Max 45 W
下降时间 11 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 45W Tc
安装方式 Through Hole
引脚数 3
封装 TO-251-3
长度 6.6 mm
宽度 2.4 mm
高度 6.2 mm
封装 TO-251-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 Lighting, Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
