PWM控制器
Encode messages with pulsating voltages by using this voltage mode PWM controller from STMicroelectronics. Its 2 PWM outputs produce a current of 400Max mA. You can operate this at a switching frequency of 400 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage mode driver"s maximum duty cycle is 49Typ %. This device has a minimum operating supply voltage of 4.5 V and a maximum of 35 V. This voltage mode driver has an operating temperature range of -25 °C to 85 °C.
频率 500 kHz
电源电压DC 35.0V max
输出接口数 2
输出电流 400 A
针脚数 16
耗散功率 1000 mW
静态电流 14.0 mA
上升时间 100 ns
开关频率 100Hz ~ 400kHz
占空比 49 %
最大占空比 49 %
下降时间 50 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1000 mW
电源电压 8V ~ 35V
电源电压Max 35 V
电源电压Min 8 V
安装方式 Surface Mount
引脚数 16

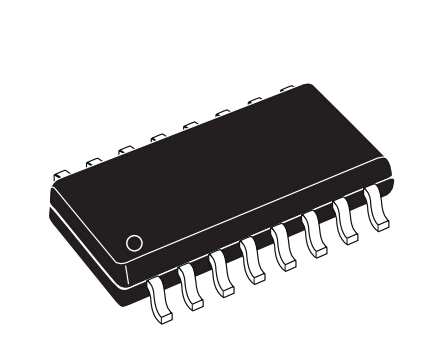

封装 SOIC-16
封装 SOIC-16
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SG2525AP013TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SG3525AP 意法半导体 | 类似代替 | SG2525AP013TR和SG3525AP的区别 |
SG2525AP 意法半导体 | 类似代替 | SG2525AP013TR和SG2525AP的区别 |
SG3525AP013TR 意法半导体 | 类似代替 | SG2525AP013TR和SG3525AP013TR的区别 |
