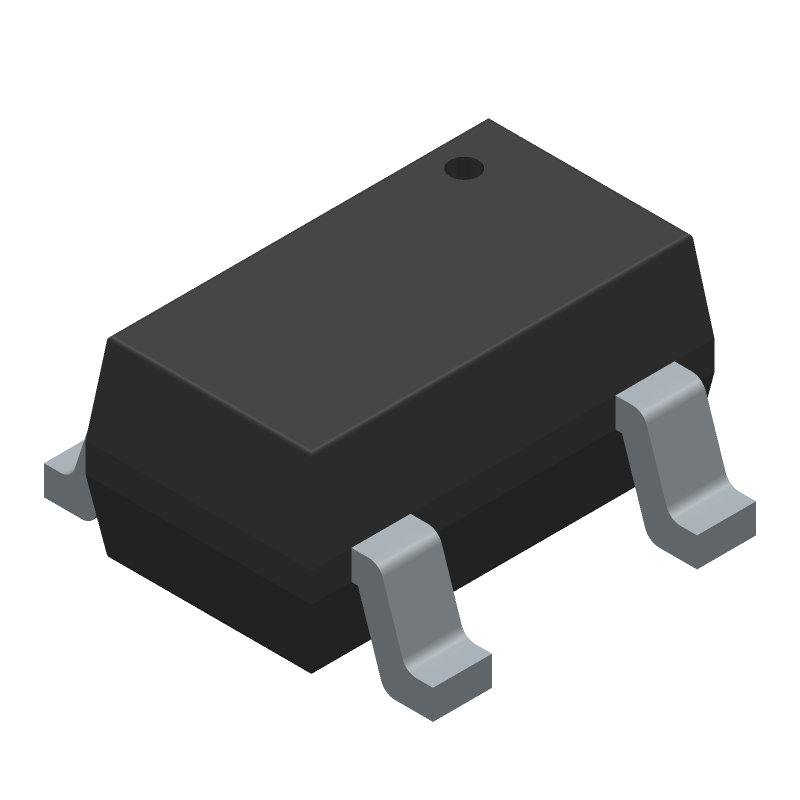

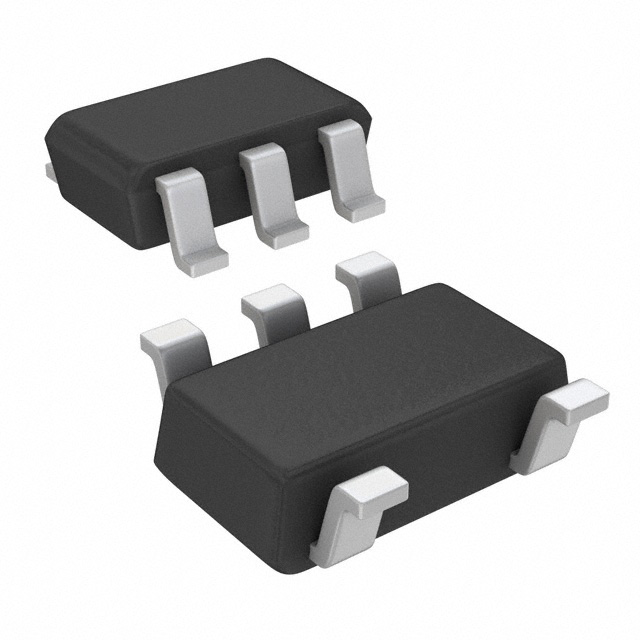

ST 系列 5.5 V 0.5 A 单通道 低有效 增强型 电源开关- SOT23-5L
STMPS21xx,增强型单通道电源开关,STMicroelectronics
STMPS21xx 配电开关适用于具有预期电容性重负载和短路的应用。
90 mΩ 高端 MOSFET 开关
500 mA 连续电流,用于 STMPS2141、STMPS2151
1000 mA 连续电流,用于 STMPS2161
热敏和短路保护,具有过电流逻辑输出
工作范围从 2.7 V 至 5.5 V
CMOS 和 TTL 兼容启动输入
欠压锁定 UVLO
12 μA 最大待机电源电流
### 智能电源开关,STMicroelectronics
欧时:
STMicroelectronics STMPS2141STR, 单输出 负载开关集成电路, 高侧 MOSFET 开关, 0.5A, 2.7 → 5.5V
得捷:
IC PWR SWITCH N-CHAN 1:1 SOT23-5
立创商城:
STMPS2141STR
艾睿:
With this high side STMPS2141STR power switch by STMicroelectronics you&s;ll be able to switch between various voltage levels in a safe manner. This charge controller has 3 outputs. It features 0.09 Ohm switch on resistance. This device has a maximum power dissipation of 33.8 mW. This charge controller has an input voltage of 2.7 to 5.5 V. Its maximum power dissipation is 33.8 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This charge controller has an operating temperature range of -40 °C to 85 °C.
安富利:
Power Switch Hi Side 0A 5-Pin SOT-23 T/R
富昌:
STMPS Series 1 Channel 5.5 V 500 mA 200 mOhm High Side Power Switch - SOT-23-5

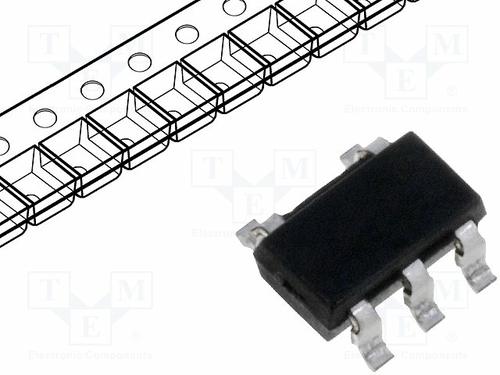

TME:
Driver; high-side switch; 500mA; 0÷5.5V; Channels:1; SOT23-5
Verical:
Current Limit SW 1-IN 1-OUT 2.7V to 5.5V 0.5A 5-Pin SOT-23 T/R
儒卓力:
**HSS 90mOhm 0.5A 5V SOT23-5 SMD **
力源芯城:
增强型单通道功率开关
DeviceMart:
IC PWR SWITCH 1CH 500MA SOT23-5
Win Source:
IC PWR SWITCH 1CH 500MA SOT23-5
工作电压 5.50V max
输出接口数 1
输出电压 0.5.5 V
输出电流 500 mA
供电电流 0.04 mA
通道数 1
针脚数 5
耗散功率 0.0325 W
上升时间 2 ms
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 500 mA
输出电流Min 0 A
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 32.5 mW
电源电压 2.7.5.5 VDC
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
