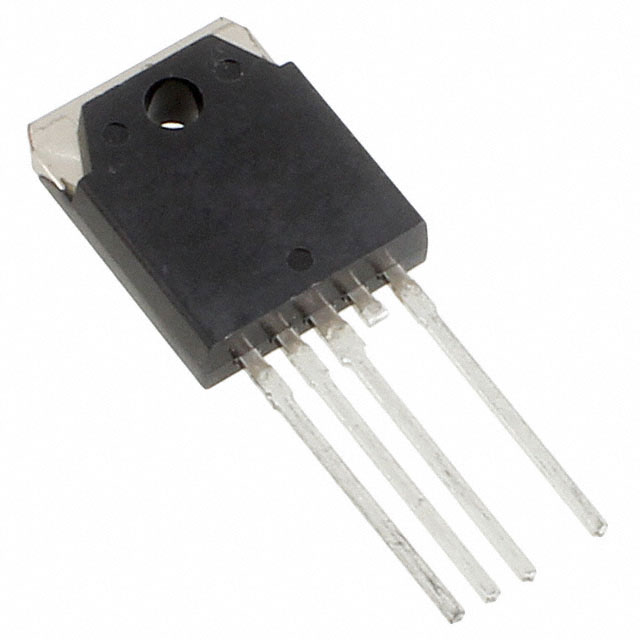

STD03N

NPN 160V 15A

Description

The and STD03P are enhanced Darlington transistors with built-in drivers and temperature compensation diode. Manufactured using the unique Sanken thin-wafer production technology, these devices achieve higher power levels through decreased thermal resistance, and can withstand higher voltages than similar devices on the market.

Features and Benefits

▪ Built-in temperature compensation diodes

▪ High power 160 W handling in a small package TO-3P, for minimized heat sink requirements

▪ Built-in drivers and temperature compensation diodes, reducing external component count and simplifying circuit design

▪ NPN and PNP versions

▪ Emitter terminals placed symmetrically, pin 5 on NPN and pin 1 on PNP models, allowing adjacent placement on PCB to minimize trace length and output skew when used in pairs

▪ Approved by major manufacturers
