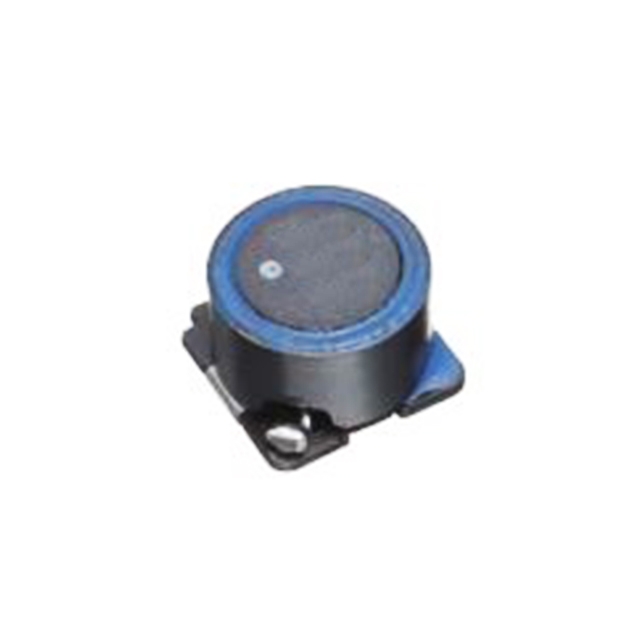

SLF10165T-1R5N6R83PF

功率电感SMD, 1.5 µH, 6.8 A, 屏蔽, 10.7 A, SLF Series, 10.1mm x 10.1mm x 6.5mm

1.5µH Shielded Wirewound Inductor 6.8A 8.71mOhm Max Nonstandard

欧时:
Wire wound Ferrite Core 10.1x10.1mm 1.5u

立创商城:
1.5uH ±30% 6.8A 6.7mΩ

得捷:
FIXED IND 1.5UH 6.8A 8.71MOHM SM

e络盟:
功率电感SMD, 1.5 µH, 6.8 A, 屏蔽, 10.7 A, SLF Series, 10.1mm x 10.1mm x 6.5mm

艾睿:
An ideal space-saving electronic component is this power SLF10165T-1R5N6R83PF surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 100K Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 6.8Typ A with a maximum resistance of 8.71m Ohm. It has an inductance of 1.5u H. This product is 10.4 mm long, 6.8 mm tall and 10.4 mm deep.

Chip1Stop:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 6.8A 8.71mOhm DCR Blister T/R

Verical:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 6.8A 8.71mOhm DCR T/R

Win Source:
1.5μH Shielded Wirewound Inductor 6.8A 8.71 mOhm Max Nonstandard
