SLF12555 系列磁性屏蔽线绕扼流圈薄型表面安装磁性屏蔽电源线路电感器,用于减少 EMC 应用包括便携式电话机、个人计算机、硬盘驱动器及其他电子设备 ### TDK 非标准 SMT 电感器(扼流圈)
固定器
得捷:
FIXED IND 330UH 1A 492 MOHM SMD
欧时:
### SLF12555 系列磁性屏蔽线绕扼流圈薄型表面安装磁性屏蔽电源线路电感器,用于减少 EMC 应用包括便携式电话机、个人计算机、硬盘驱动器及其他电子设备 ### TDK 非标准 SMT 电感器(扼流圈)
立创商城:
330uH ±20% 590mA 492mΩ
艾睿:
Use this power SLF12555T-331MR59-PF surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. It has an inductance of 330u H. This product is 12.8 mm long, 5.8 mm tall and 12.8 mm deep. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 492m Ohm. It has a tolerance of 20%. Its test frequency is 1K Hz.
安富利:
Ind Power Shielded Wirewound 330uH 20% 1KHz 1A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 330uH 20% 1KHz Ferrite 1A 492mOhm DCR Blister T/R
Verical:
Inductor Power Shielded Wirewound 330uH 20% 1KHz Ferrite 1A 0.492Ohm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 330uH 20% 1KHz Ferrite 1A 492mOhm DCR T/R
额定电流 1 A
容差 ±20 %
电感 330 µH
产品系列 SLF
屏蔽 Yes
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤492 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 410 mΩ
安装方式 Surface Mount
封装 Non Standard

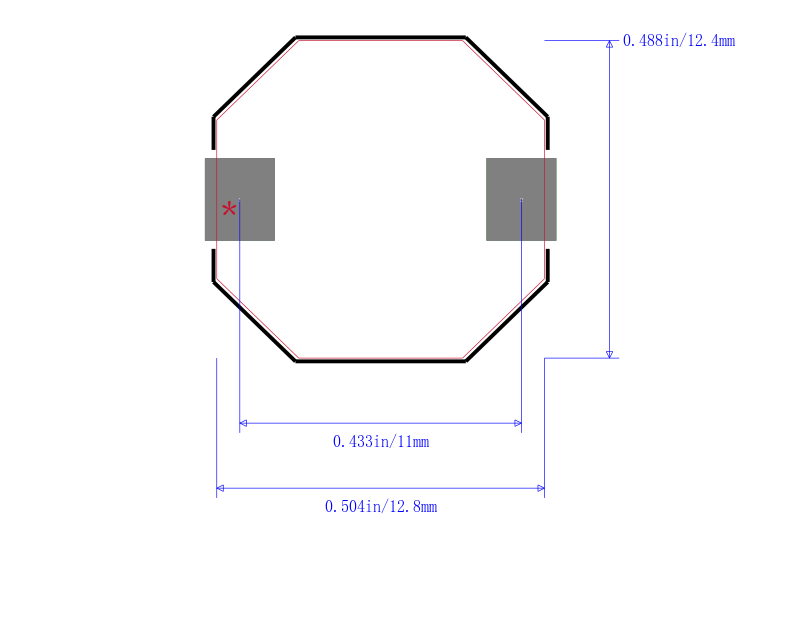

长度 12.5 mm
宽度 12.5 mm
高度 5.5 mm
封装 Non Standard
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
