SML-LX0805UWC-TR

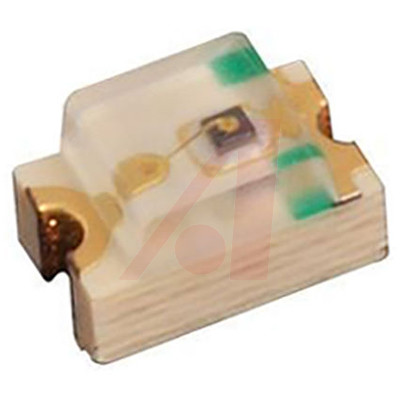

SML-LX0805UWC-TR图片1
SML-LX0805UWC-TR概述

SML-LX0805UWC-TR White LED, 0805 Diffused, Rectangle Lens SMD package

**Octo Range 0805**

The range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of Colors and lens finishes.

SML-LX0805UWC-TR中文资料参数规格
技术参数

发光强度 150 mcd

视角 140°

测试电流 20 mA

正向电压Max 3.6 V

正向电流Max 25 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 95 mW

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

封装公制 2012

封装 0805

物理参数

颜色 White

外观颜色 Transparent

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SML-LX0805UWC-TR
型号: SML-LX0805UWC-TR
制造商: Lumex 鲁美科思
描述:SML-LX0805UWC-TR White LED, 0805 Diffused, Rectangle Lens SMD package
