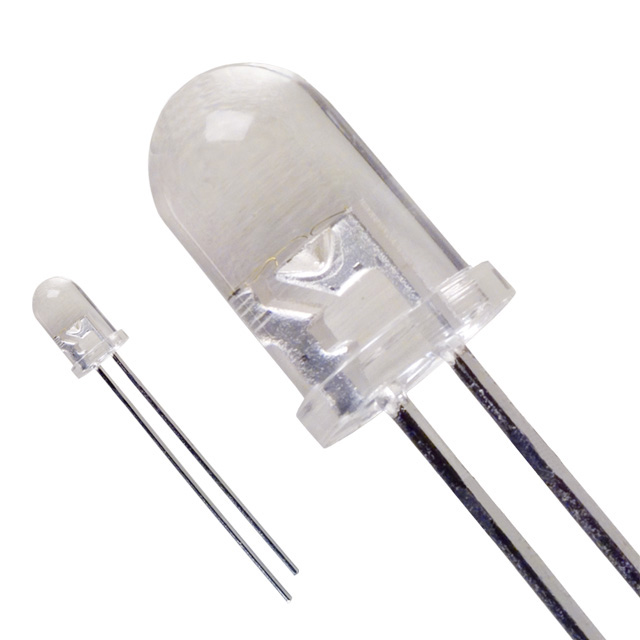

标准LED-通孔 White 11000mcd 100mW Water Clear
** - Octo Range**
The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of Colors and lens finishes.
正向电压 3.5 V
发光强度 11000 mcd
视角 20°
透镜样式 Non-Diffused
耗散功率 100 W
测试电流 20 mA
正向电流 25 mA
正向电压Max 4 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1-3
高度 8.60 mm
直径 5.00 mm
封装 T-1-3
颜色 White
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SSL-LX5093UWC/G Lumex 鲁美科思 | 当前型号 | 当前型号 |
SSL-LX5093UWC/B 鲁美科思 | 功能相似 | SSL-LX5093UWC/G和SSL-LX5093UWC/B的区别 |
