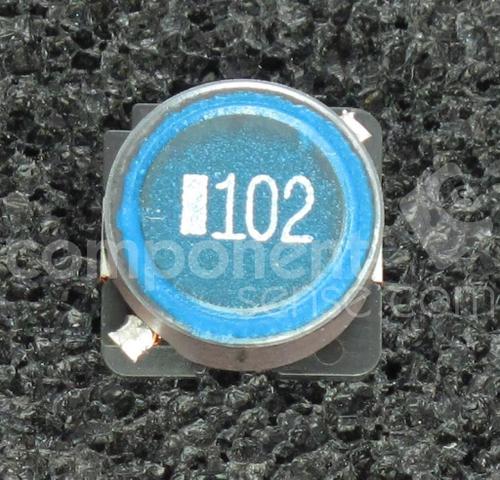

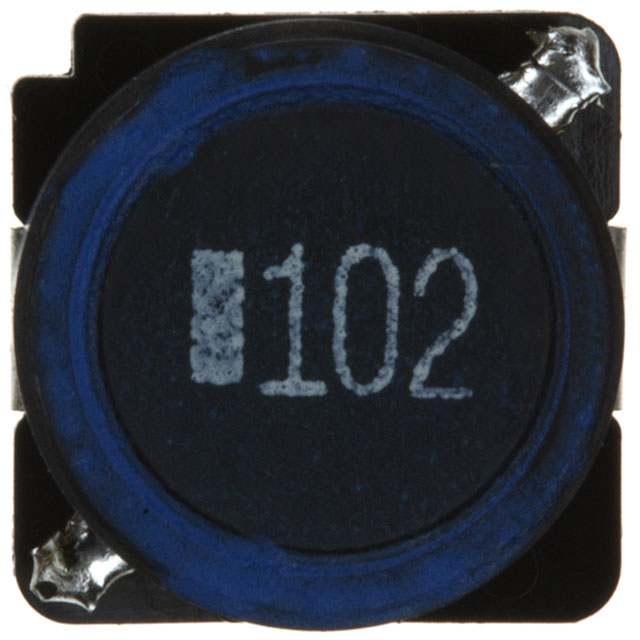

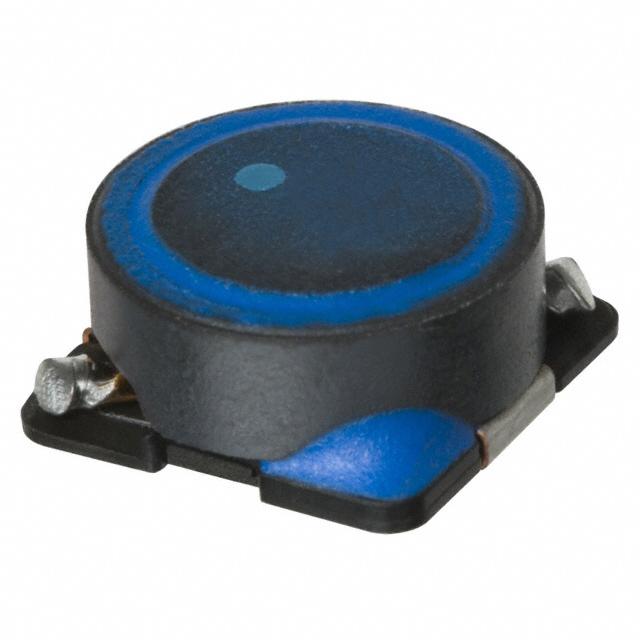

SLF10145T-102MR29-H

固定电感器

固定器

立创商城:
1mH ±20% 400mA 2.8Ω

得捷:
FIXED IND 1MH 290MA 3.36 OHM SMD

艾睿:

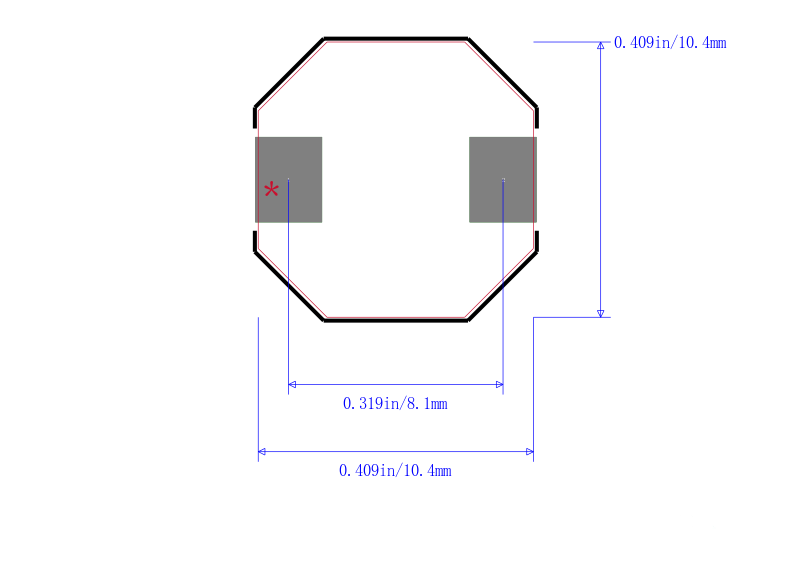

Make any circuit look clean and compact using this power SLF10145T-102MR29-H surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 1m H. It has a tolerance of 20%. This product is 10.4 mm long, 4.8 mm tall and 10.4 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 290mA typ with a maximum resistance of 3.36 Ohm. Its test frequency is 1K Hz.

安富利:
SMD INDUCTORSCOILS FOR POWER LINEWOUND, MAGNETIC SHIELDED

Chip1Stop:
Inductor Power Shielded Wirewound 1mH 20% 1KHz Ferrite 290mA 3.36Ohm DCR Automotive Blister T/R

Verical:
Inductor Power Shielded Wirewound 1000uH 20% 1KHz Ferrite 0.29A 3.36Ohm DCR Automotive T/R

MASTER:
Inductor Power Shielded Wirewound 1mH 20% 1KHz Ferrite 290mA 3.36Ohm DCR Automotive T/R

Online Components:
Inductor Power Shielded Wirewound 1mH 20% 1KHz Ferrite 290mA 3.36Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1mH 20% 1KHz Ferrite 290mA 3.36Ohm DCR Automotive T/R

Win Source:
1mH Shielded Wirewound Inductor 290mA 3.36 Ohm Max Nonstandard
