SKY65006-348LF

Narrow Band Medium Power, 2400MHz Min, 2500MHz Max, 3 X 3MM, 0.75MM HEIGHT, ROHS COMPLIANT, PLASTIC, QFN-16

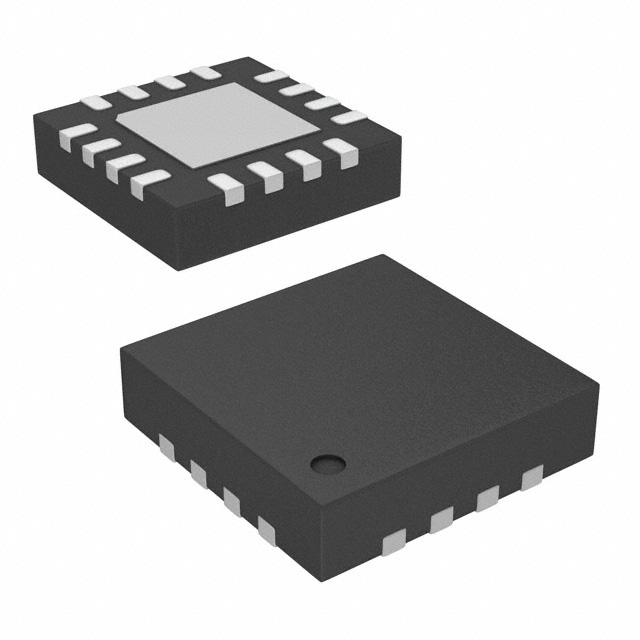

The is a linear, high-gain two-stage power amplifier with integrated output power detector and second harmonic F2 filter, designed for low voltage operations. This device is manufactured on an advanced Gallium Arsenide GaAs, Heterojunction Bipolar Transistor HBT process. It is designed for power amplifier applications in WLAN, Zigbee®, and spread spectrum systems from 2.4–2.5 GHz. The amplifier is packaged in a QFN-16, 3 x 3 x 0.75 mm package.
