SMM02040C1809FB300

VISHAY  SMM02040C1809FB300  电阻, 金属电极无限面MELF 表面贴装, 18 ohm, 200 V, 250 mW, ± 1%, SMM0204 Series, 薄膜 新

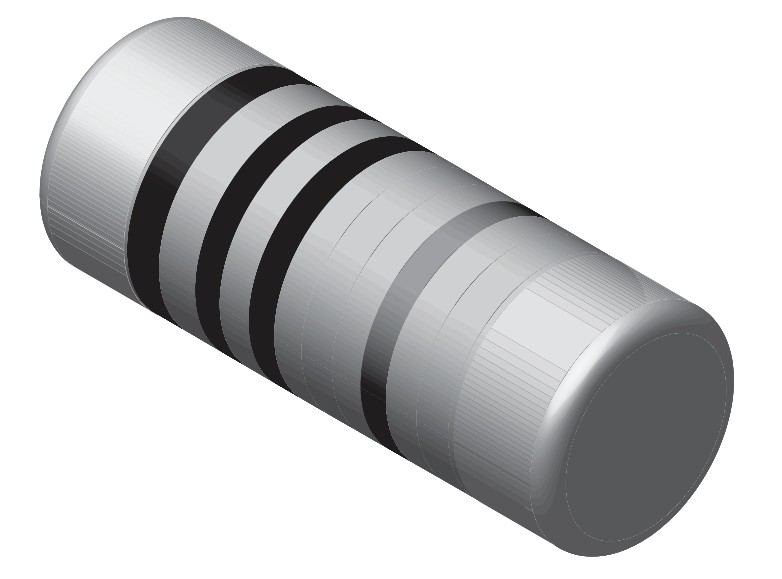

The Vishay SMM0204 series are automotive grade thin film mini-MELF resistors. The advanced metal film technology thin film MELF resistors are perfect choice for most fields of modern electronics where reliability and stability are of major concern. The resistance range includes E96, E24 and E192 decade values from 0.22ohm to 10Mohm. These resistors have an excellent stability in different environmental conditions, best in class pulse load capability and reflect the outstanding level of proven reliability. Typical application includes telecommunication and medical equipment.

.

DIN 0204 standard size

.

Neutral version available

.

Rated dissipation of 0.4W

.

Available in ±5%, ±1%, ±0.5%, ±0.25% and ±0.1% resistance tolerance

.

Zero ohm jumper are available

.

Intrinsic sulphur resistance

.

Operating voltage of 200V

.

Automotive grade AEC-Q200 qualified

.

±100ppm/K, ±50ppm/K, ±25ppm/K, ±15ppm/K TCR values available

.

Operating temperature of -55°C to +155°C
