SFH600-2

SFH 系列，Vishay SemiconductorVO617A 和 VO618A 系列提供高达 5300 Vrms 的电压隔离。 VO615A、VOL617A 和 VOL628A 系列提供高达 5000 Vrms 的电压隔离。 VOM617A 和 VOM618A 系列提供高达 3750 Vrms 的电压隔离。 VO617A、VO618A、VOL617A、VOL628A、VOM617A 和 VOM618A 应用包括交流适配器隔离、开关模式电源、可编程逻辑控制器、工业控制、电信系统、智能仪表、办公设备、互联网和太阳能电源。 光耦合器 VO615A、VO617A、VO618A、VOL617A、VOL628A、VOM617A 和 VOM618A 工作温度可高至 110 度。 ### 光耦合器，Vishay Semiconductor

DESCRIPTION

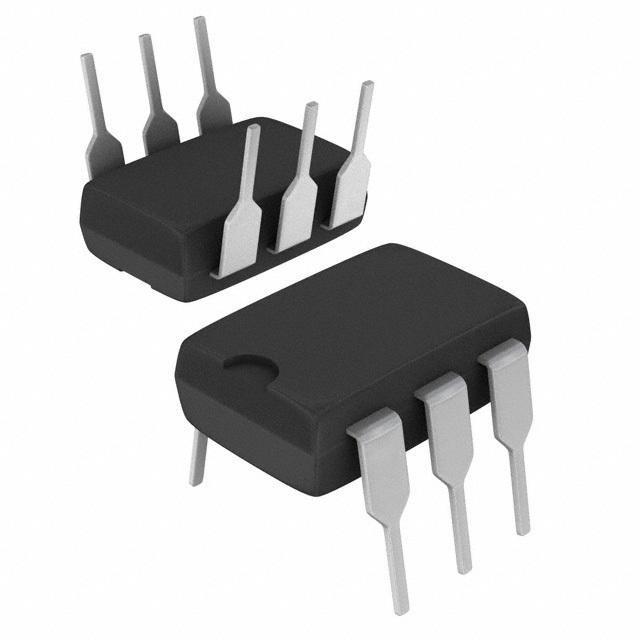

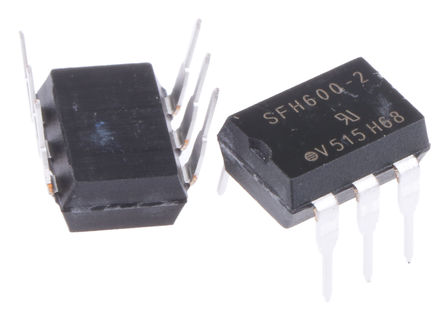

The SFH600 is an optocoupler with a GaAs LED emitter which is optically coupled with a silicon planar phototransistor detector. The component is packaged in a plastic plug-in case, 20 AB DIN 41866.

The coupler transmits signals between two electrically isolated circuits. The potential  difference between the circuits to be coupled should not exceed the maximum permissible insulating voltage.

FEATURES

• Isolation test voltage 1.0 s, 5300 VRMS

• VCEsat = 0.25 ≤ 0.4 V, IF = 10 mA, IC = 2.5 mA

• Built to conform to VDE requirements

• High quality premium device

• Long term stability

• Storage temperature, - 55 °C to + 150 °C

• Lead Pb-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
