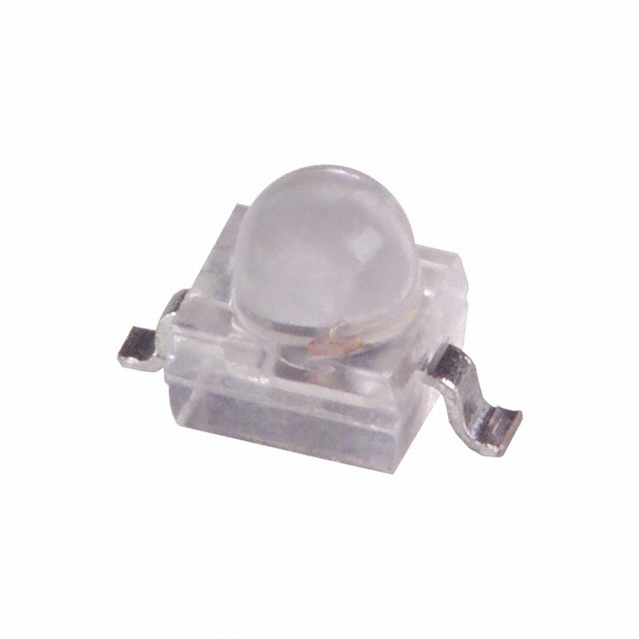

标准LED-SMD SMT Gull Wing Orange
Orange Indication - Discrete 2V 2-SMD, Gull Wing
得捷:
LED ORANGE CLEAR AXIAL SMD
贸泽:
标准LED-SMD SMT Gull Wing Orange
艾睿:
LED Uni-Color Orange 620nm 2-Pin SMD T/R
Verical:
LED Uni-Color Orange 620nm 2-Pin SMD T/R
Electro Sonic:
LED Uni-Color Orange 620nm 2-Pin SMD T/R
Win Source:
LED ORANGE CLEAR AXIAL SMD / Orange LED Indication - Discrete 2V 2-SMD, Gull Wing
正向电压 2 V
波长 610 nm
发光强度 700 mcd
视角 25°
透镜样式 Non-Diffused
峰值波长 620 nm
耗散功率 100 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.5 mm
宽度 2 mm
高度 3.00 mm
封装 SMD-2
颜色 Orange
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
