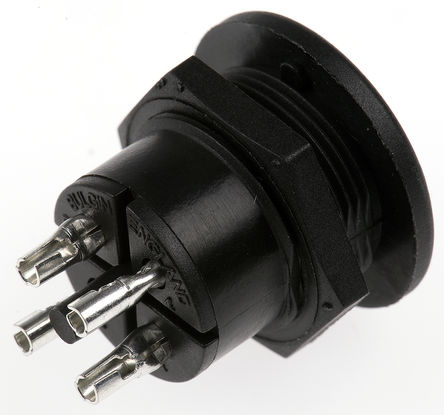

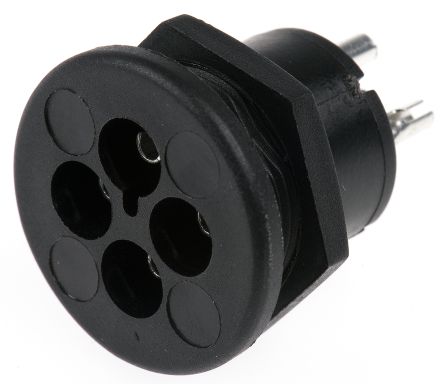

BULGIN SA2368 圆形连接器, General Purpose系列, 插座, 4 触点, 母, 焊接, 面板安装
4-Way Shrouded Contact, Polarised Plugs & Sockets

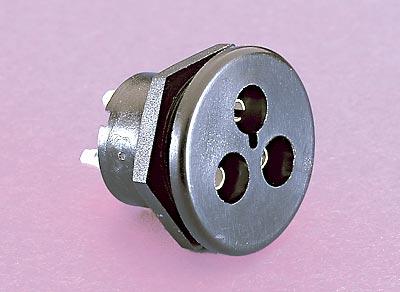

From Bulgin, 4-pole connectors, featuring insulating boot for socket see stock no 544-128. Dimensions and fixings same as 3-pole version.
Current rating | 3A
---|---
Voltage rating | 250Vac
Plug | Termination, screw
Socket | Termination, solder bucket
Plug Contact material | Brass Nickel plated
Socket Contact material | Brass Tin plated
Operating temp. | -20°C to +70°C
Max. cable dia. | 7.9mm
触点数 4
极性 Female
触点电镀 Tin
额定电压AC 250 V
额定电流 3 A
绝缘电阻 10000 MΩ
针脚数 4
接触电阻 10 mΩ
额定电流Max 3 A
击穿电压 4.2 kV
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 10 mΩ
安装方式 Solder, Panel
长度 27.8 mm
触点材质 Brass
材质 Nylon
工作温度 -20℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
