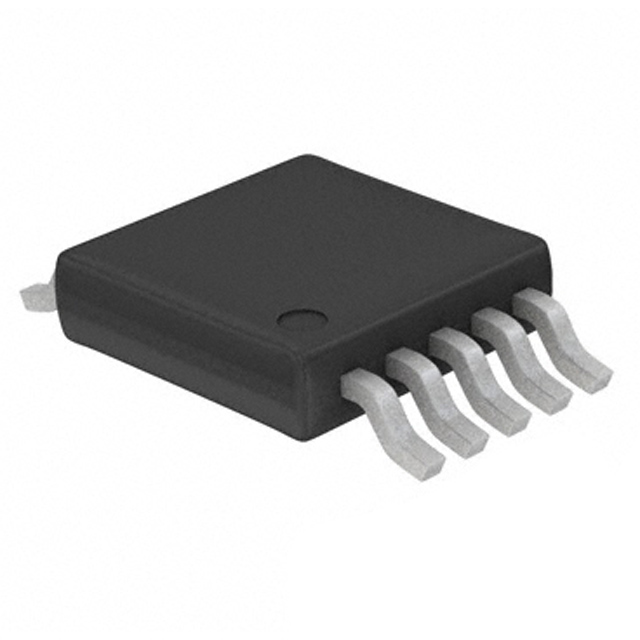

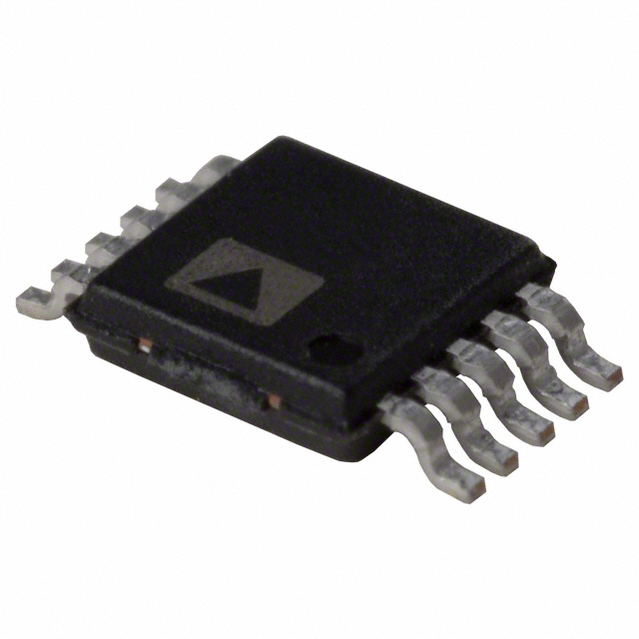

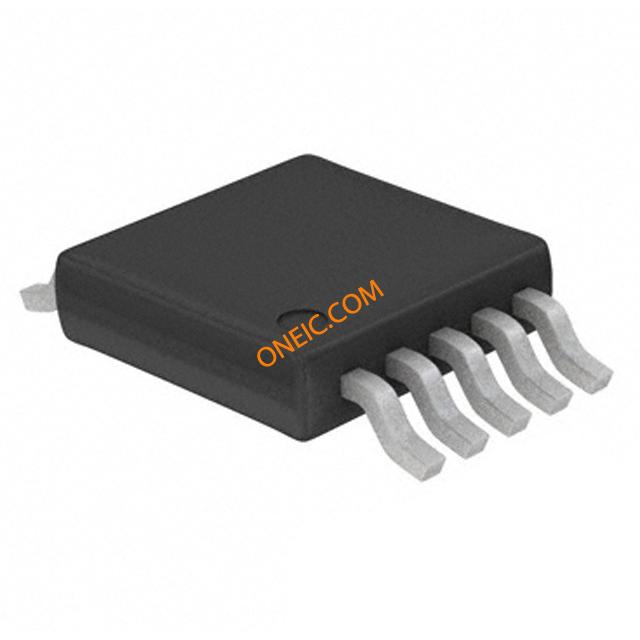

ANALOG DEVICES SSM2167-1RMZ-REEL 音频功率放大器, AB, 1通道, 2.5V 至 5.5V, MSOP, 10 引脚
The is a Low Voltage Microphone Preamplifier with variable compression and noise gating. This is a complete and flexible solution for conditioning microphone inputs in personal electronics and computer audio systems. It is also excellent for improving vocal clarity in communications and public address systems. A low noise voltage controlled amplifier VCA provides a gain that is dynamically adjusted by a control loop to maintain a set compression characteristic. The compression ratio is set by a single resistor and can be varied from 1:1 to over 10:1 relative to the fixed rotation point. Signals above the rotation point are limited to prevent overload and to eliminate popping. A downward expander noise gate prevents amplification of background noise or hum. This results in optimized signal levels prior to digitization, thereby eliminating the need for additional gain or attenuation in the digital domain.
ESD sensitive device, take proper precaution while handling the device.
供电电流 5 mA
电路数 1
通道数 1
针脚数 10
静态电流 2.30 mA
带宽 1.00 MHz
增益频宽积 1 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Security and Surveillance, 通信与网络, Asset Tracking, 计算机和计算机周边, 音频, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SSM2167-1RMZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
SSM2167-1RMZ-R7 亚德诺 | 完全替代 | SSM2167-1RMZ-REEL和SSM2167-1RMZ-R7的区别 |
SSM2167-1RMZ 亚德诺 | 完全替代 | SSM2167-1RMZ-REEL和SSM2167-1RMZ的区别 |
SSM2167-1RM-REEL 亚德诺 | 完全替代 | SSM2167-1RMZ-REEL和SSM2167-1RM-REEL的区别 |
