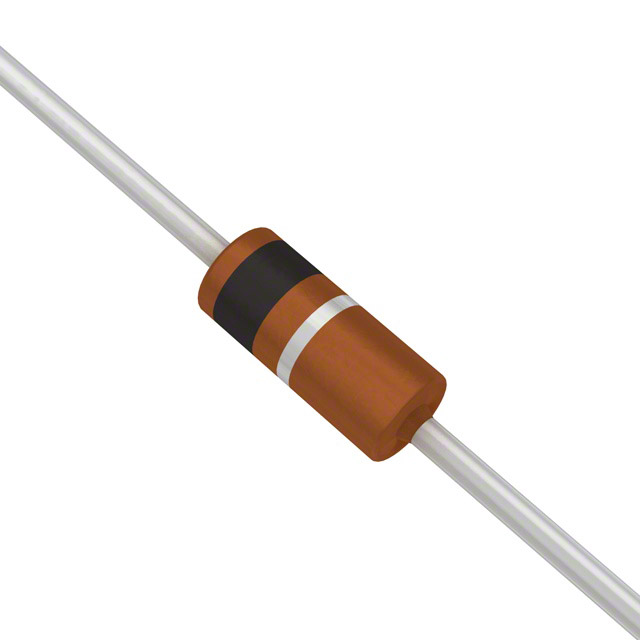

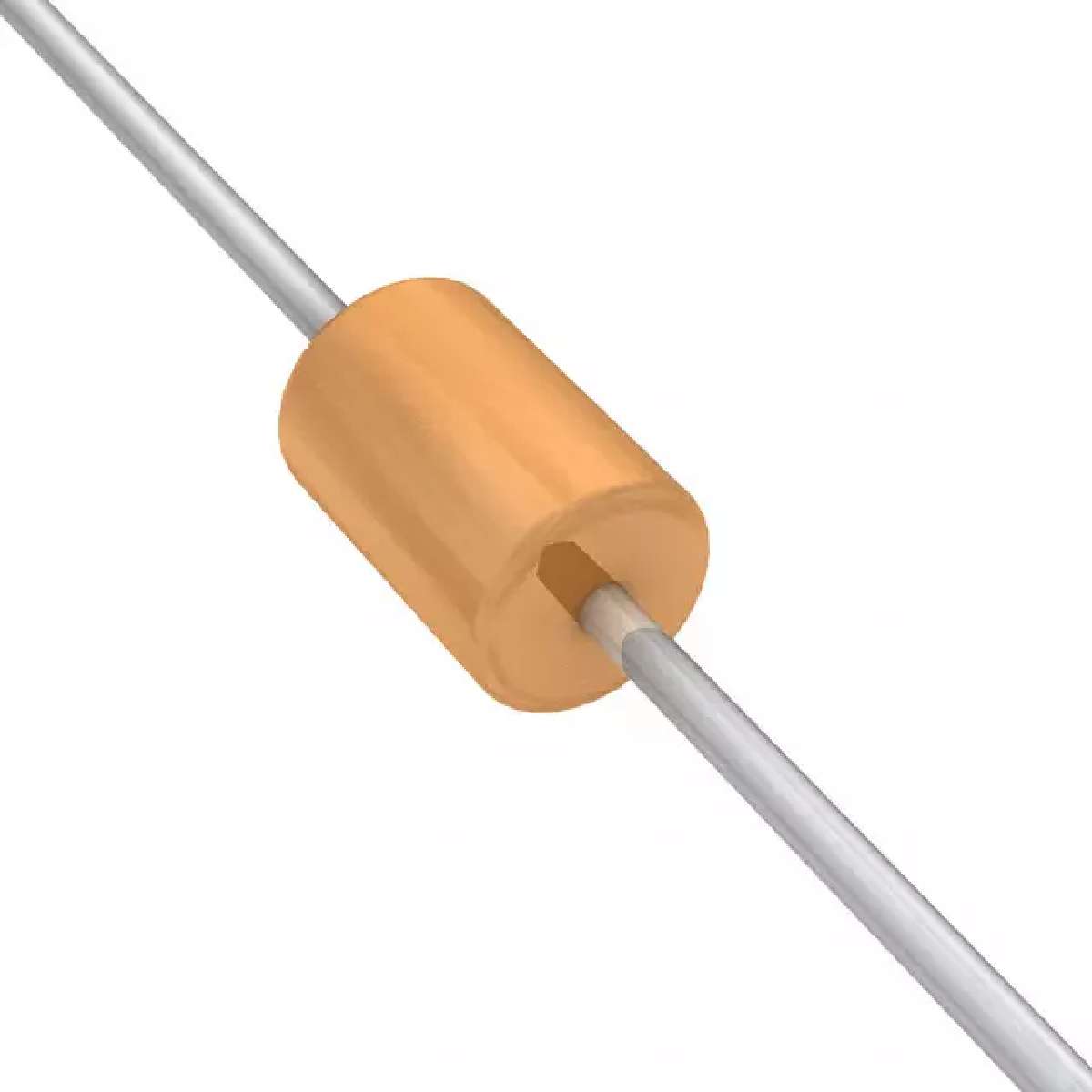

VISHAY SD103A-TR 小信号肖特基二极管, 肖特基, 单, 40 V, 600 mV, 15 A, 125 °C
The is a Small Signal Schottky Diode features low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications. This metal-on-silicon Schottky barrier device is protected by a PN junction guard ring. It is used for general purpose applications. It can also be used in click suppression, efficient full wave bridges in telephone subsets, blocking diodes in rechargeable low voltage battery systems, HF-detector, protection circuit, small battery charger and AC-DC/DC-DC converters.
- .
- AEC-Q101 qualified
- .
- 125°C Junction temperature
额定电流 400 A
针脚数 2
正向电压 0.6 V
耗散功率 400 mW
热阻 0.3K/W RθJA
反向恢复时间 10 ns
正向电流 200 mA
最大正向浪涌电流（Ifsm） 15 A
正向电压Max 600 mV
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 125 ℃
工作结温Max 125 ℃
耗散功率Max 400 mW
安装方式 Through Hole
引脚数 2
封装 DO-35
长度 3.9 mm
封装 DO-35
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SD103A-TR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SD103AW Diotec Semiconductor | 类似代替 | SD103A-TR和SD103AW的区别 |
SD103A-TP 美微科 | 功能相似 | SD103A-TR和SD103A-TP的区别 |
SD103A Taitron | 功能相似 | SD103A-TR和SD103A的区别 |
