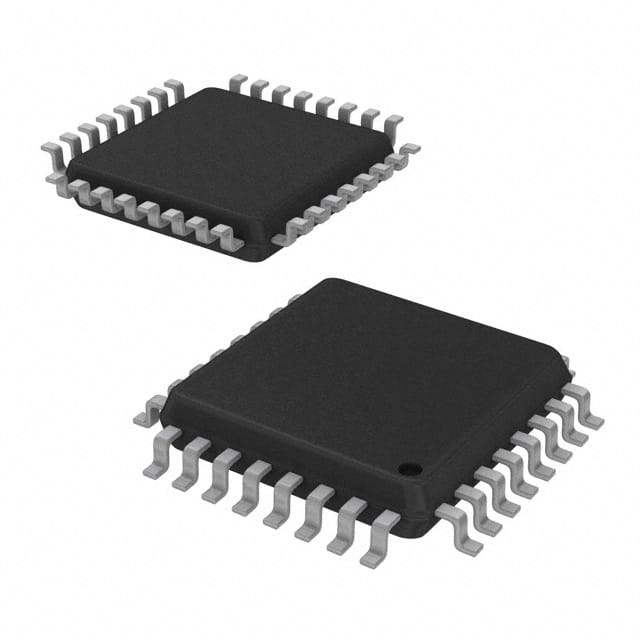

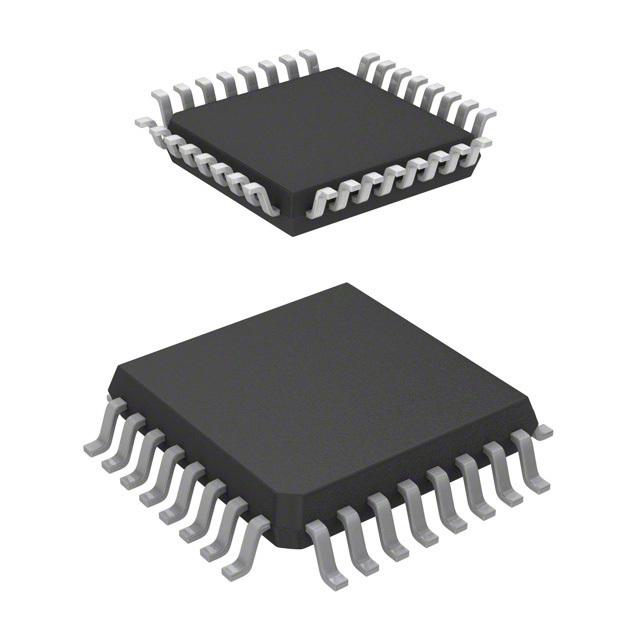

微控制器, 特定应用, S12 Magni V, S12VR系列, 16位, 32KB, 25MHz, LQFP-32
Overview
The S12VR gives the smallest, most efficient and scalable relay driven DC motor control solution for industrial and automotive applications such as window lift, sunroof.
It integrates the S12 16-bit microcontroller together with LIN Physical Interface, lowside & highside drivers. High Voltage Input pins for 12 V switch interfaces, EVDD for sensor supply that reduce system, qualification and manufacturing cost.
MoreLess
## Features
* S12 25 MHz max 16-bit CPU
* 16 - 64kB Flash Memory with ECC
* Voltage Regulator operating directly from car battery
* LIN Physical layer
* 2 Low-side drivers typ. for relay
* 1-2 High-side drivers
* 4 High Voltage Inputs for Switch Monitoring
* On chip RC Oscillator, trimmed to +/- 1,3% tolerance
* This product is included in ® product longevity program, with assured supply for a minimum of 15 years after launch
* Ultra-Reliable MCUs
