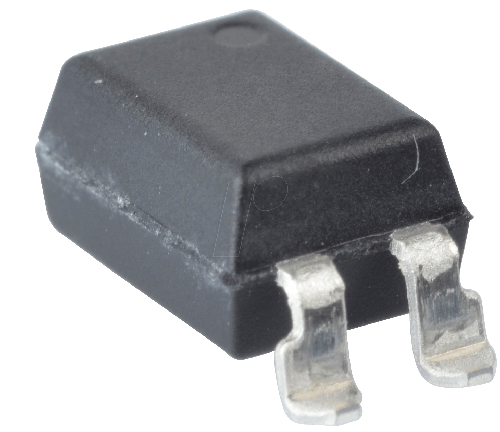

VISHAY SFH6156-2. 光电耦合器, 晶体管输出, 1通道, 表面安装DIP, 4 引脚, 60 mA, 5.3 kV, 63 %
The is an Optocoupler Phototransistor features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector and is incorporated in a plastic SMD package. The coupling devices are designed for signal transmission between two electrically separated circuits.
- .
- Excellent CTR Linearity Depending on Forward Current
- .
- 5300Vrms Isolation Test Voltage
- .
- Fast Switching Times
- .
- Low CTR Degradation
- .
- Low Coupling Capacitance
- .
- Halogen-free
额定电压DC 1.25 V
上升/下降时间 2 µs
输出电压 70.0 V
通道数 1
针脚数 4
正向电压 1.25 V
输入电流 60.0 mA
耗散功率 150 mW
上升时间 2 µs
隔离电压 5.3 kV
正向电流 60 mA
输出电压Max 70 V
正向电压Max 1.65 V
正向电流Max 60 mA
下降时间 2 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 4
封装 DIP-4
高度 3.81 mm
封装 DIP-4
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, 电源管理, 通信与网络, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SFH6156-2 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SFH6156-2T 威世 | 功能相似 | SFH6156-2和SFH6156-2T的区别 |
VO617A-2X017T 威世 | 功能相似 | SFH6156-2和VO617A-2X017T的区别 |
4N37 Vishay Intertechnology | 功能相似 | SFH6156-2和4N37的区别 |
