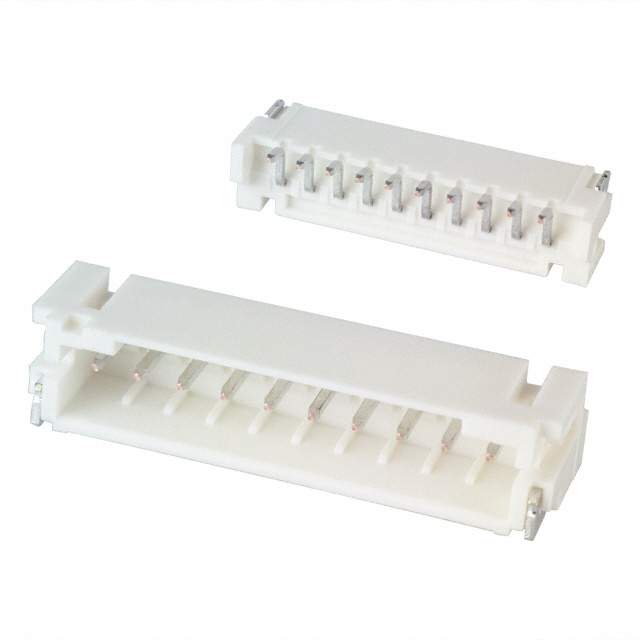

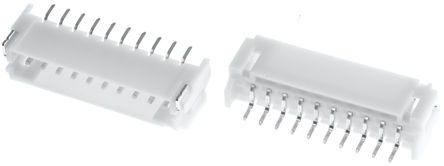

S10B-PH-SM4-TBLFSN

JST JAPAN SOLDERLESS TERMINALS  S10B-PH-SM4-TBLFSN  线至板连接器, 侧部进入, PH系列, 10 触点, 针座, 2 mm, 表面安装　, 1 排

**Board Connector PH Series Surface Mount Header, Low Insertion Force Side Entry**

The PH Connectors are designed to meet the demand for high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.

.

*Features & Benefits**

• Reliable contact

• Fully shrouded header

• Current rating of 2A

• Printed circuit board retention mechanism

• Surface mount model

• Voltage rating of 100 V ac

• Temperature range from -25°C to 85°C

• Wire size of 32 AWG to 24 AWG

• Number of contacts varies from 2 to 16 pins

• Contact material is brass

• Tin plated contact

• UL, CSA and TUV certified

### 2.0mm 线对板，JST PH 系列
