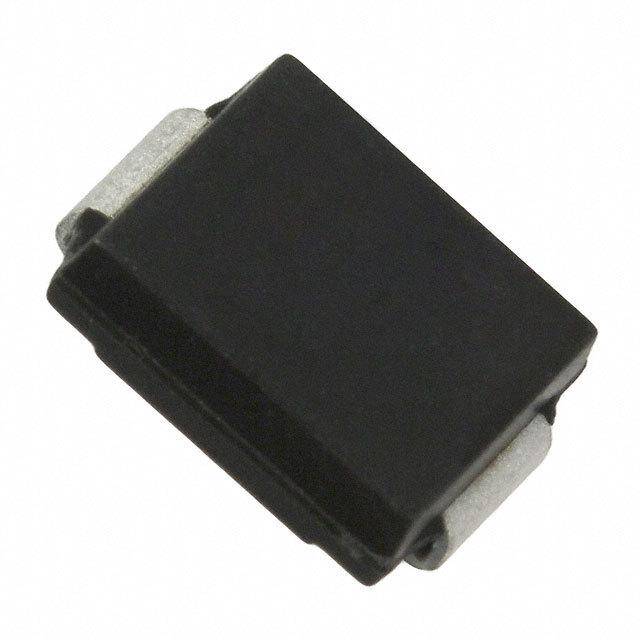

SMCJ180A-H

ESD 抑制器/TVS 二极管 180volts 1uA 1 Amps Uni-Dir

General Information

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.

Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB SMC size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 495 V and Breakdown Voltage up to 550 V. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 V to Minimum Breakdown Voltage.

Bourns® Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and their flat confguration minimizes roll away.

Features

.

■ Surface Mount SMC package

■ Standoff Voltage: 5.0 to 495 volts

■ Power Dissipation: 1500 watts

Applications

■ IEC 61000-4-2 ESD Min. Level 4

■ IEC 61000-4-4 EFT

■ IEC 61000-4-5 Surge
