STSPIN230

芯片, 电机驱动器, 半桥接器, 1.3A, VFQFPN

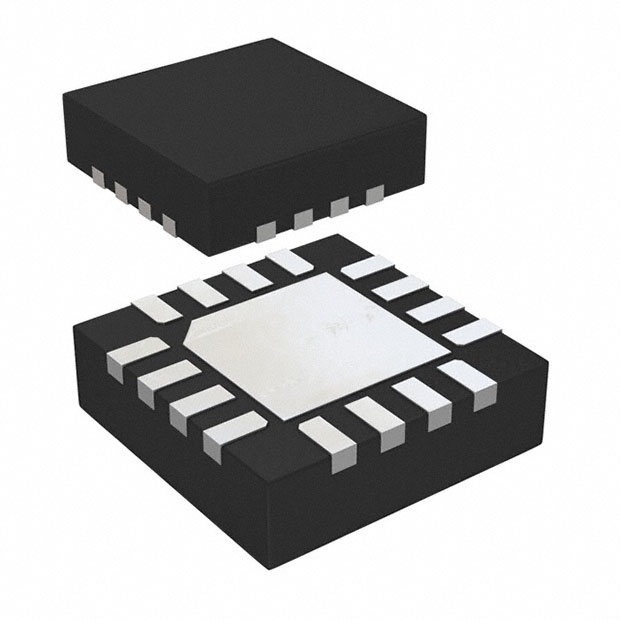

The device integrates a triple half-bridge low RDSON power stage in a small QFN - 3 x 3 mm package.

The device is designed to operate in battery-powered scenarios and can be forced into a zero-consumption state, allowing a significant increase in battery life.

The device offers a complete set of protection including overcurrent, overtemperature and short-circuit protection.

**Key Features**

.

Operating voltage from 1.8 to 10 V

.

Maximum output current 1.3 Arms

.

RDSON HS + LS = 0.4 Ω typ.

.

Full protection set

.

Non-dissipative overcurrent protection

.

Short-circuit protection

.

Thermal shutdown

.

Interlocking function

.

Energy saving and long battery life with standby consumption less than 80 nA
