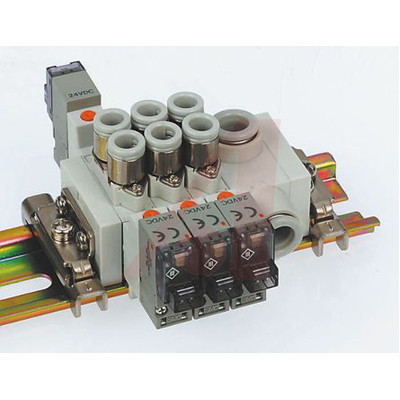

SY Z 系列盒式阀形小质轻，主体带孔设计 易于配置，并且可扩展阀门系统 阀门随附密封盘 高流量、快速响应 标准 DIN 导轨安装 24V 直流电磁阀电压 低功耗 ### 注L型连接器必须单独订购 ### SMC SY Z 系列一系列模块式 DIN 卡轨安装电磁线圈控制阀和附件，用于气动回路。 所有阀门均使用压缩过滤空气（经润滑或未经润滑）进行工作，并具有 -10 至 +50°C 的工作温度范围。
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The Series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
* Fluid: air
* Operating pressure range: internal pilot 0.1 - 0.7MPa external pilot -100kPa to 0.7MPa external pilot, pilot pressure range 0.25 - 0.7MPa
* Effective area mm 2 Cv: body ported 10.6 0.59; base mounted 12.6 0.7
* Coil rated voltage: 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
* Response time 0.5MPa w/o indicator light & surge voltage suppressor: 32ms or less
* Ambient & fluid temperature: 50°C
