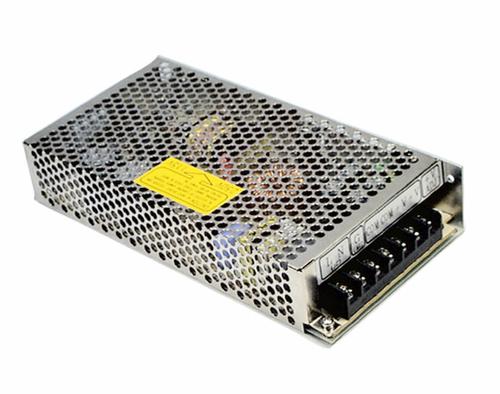

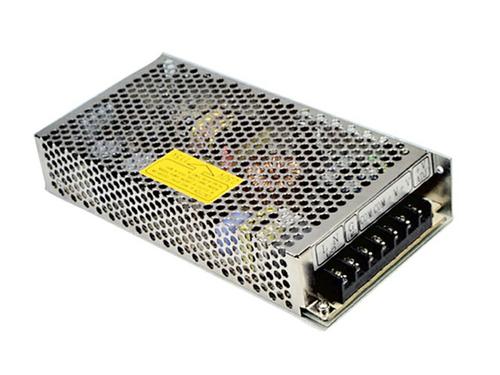

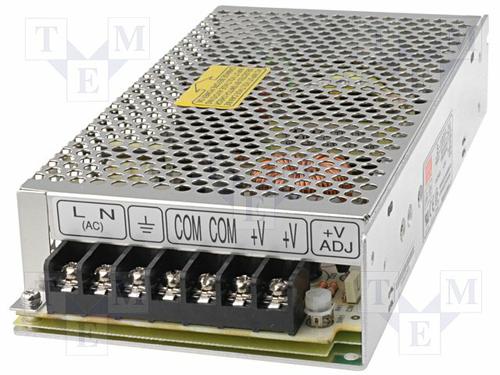

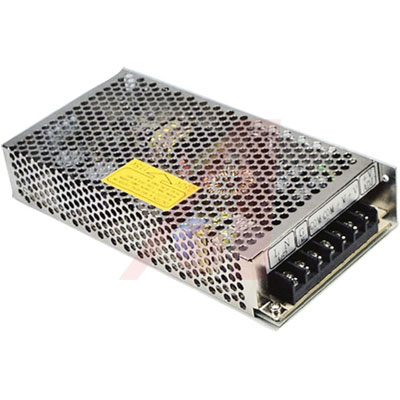

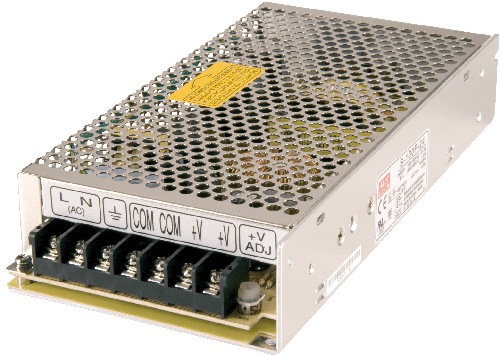

S-100F-24

MEAN WELL  S-100F-24  封闭式电源 交流/直流, 开关模式, 可调输出, 176 V, 264 V, 108 W, 26.4 V, 4.5 A

* Single Output Switching Power Supply

* Universal AC Input: 85-264 VAC, 120-370 VDC

* Fixed Switching Frequency at 56 kHz

* Short Circuit, Overload, and Over-Voltage Protection Included

* Free Air Convection Cooling

* 100% Full Load Burn-In Tested

* 2-Year Warranty

**Features:**

* Output: 24 V, 4.5 A

* Efficiency: 83%

* Mean Time Before Failure: 314.9K Hours Min.

* AC Input Voltage Range: 88-132 VAC, 176-264 VDC

* DC Adjustment Range: ±10% Rated Output Voltage

* Overload Protection: 105% — 150% Rated Output Power Via Hiccup Mode, Auto-Recovery

* Over Voltage Protection: 115% - 135% Rated Output Voltage Via Hiccup Mode, Auto-Recovery

* Connection: 7P/9.5 mm Pitch Terminal Block

* Dimensions L x W x H Iin.: 7.83 x 3.86 x 1.50 Inch
