ST3485EIDT

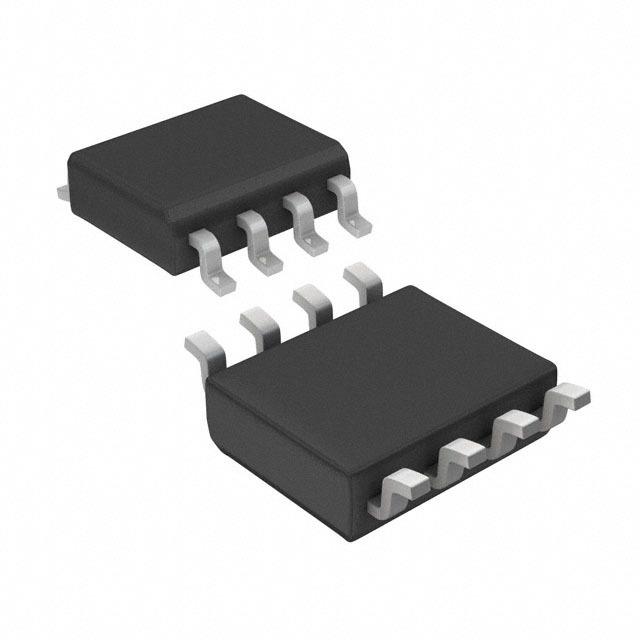

RS422/RS485收发器, 1驱动器, 1接收器, 3V至3.6V电源, SOIC-8

The ST3485EB/EC/EI/EIY device is ±15 kV ESD protected, 3.3 V low power transceiver for RS-485 and RS-422 communications. The device contains one driver and one receiver in half duplex configuration.

The ST3485E device transmits and receives at a guaranteed data rate of at least 12 Mbps.

All transmitter outputs and receiver inputs are protected to ±15 kV IEC 61000-4-2 air discharge.

The driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high impedance state.

**Key Features**

.

ESD protection

.

±15 kV IEC 61000-4-2 air discharge

.

±8 kV IEC 61000-4-2 contact discharge

.

Operate from a single 3.3 V supply - no charge pump required

.

Interoperable with 5 V logic

.

1 µA low current shutdown mode max.

.

Guaranteed 12 Mbps data rate

.

-7 to 12 V common mode input voltage range

.

Half duplex versions available

.

Industry standard 75176 pinout

.

Current limiting and thermal shutdown for driver overload protection

.

Guaranteed high receiver output state for floating inputs with no signal present

.

Allow up to 64 transceivers on the bus

.

Available in SO8 package

.

Automotive grade ST3485EIY
