SKY65014-70LF

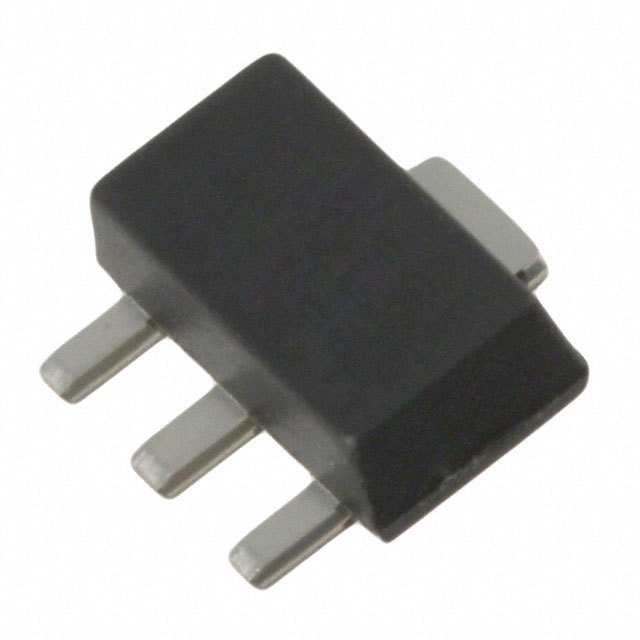

RF Amp Chip Single Cascadable Amp 6GHz 5V 4Pin3+Tab SOT-89

The SKY65014 is a general-purpose, broadband amplifier fabricated from Skyworks InGaP HBT process and packaged in a SOT-89 package. The amplifier’s input and output impedances are 50 Ω, which allows these amplifiers to be cascaded without external impedance matching networks. The typical -3 dB bandwidth of the SKY65014 is 0.1 to 6 GHz. A populated evaluation board is available upon request.

得捷:
IC AMP DBS 100MHZ-6GHZ SOT89-4

安富利:
The SKY65014-70LF is a general purpose, broadband amplifier. The device is fabricated from Skyworks InGaP HBT process and packaged in a miniature Small Outline Transistor SOT-89 package.The device’s 50 Ω input and output impedance allow it to be easily cascaded without external impedance matching networks. The typical –3 dB bandwidth of the SKY65014-70LF is 0.1 to 6.0 GHz.

Chip1Stop:
RF Amp Chip Single Cascadable Amp 6GHz 5V 4-Pin3+Tab SOT-89

Verical:
RF Amp Single Cascadable Amp 7GHz 5V 4-Pin3+Tab SOT-89 T/R

RfMW:
Amplifier, 0.1 - 6GHz, 18.5dBm, 15dB, SOT-89

CDI:
Amplifier, 0.1 - 6GHz, 18.5dBm, 15dB, SOT-89
