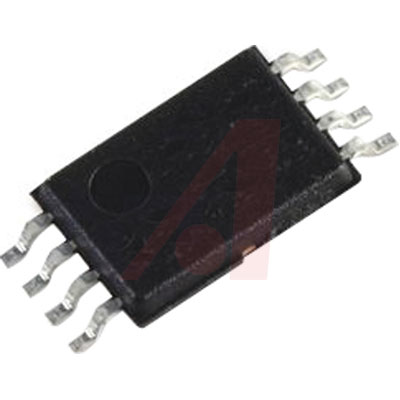

Trans MOSFET P-CH 30V 3.5A 8Pin TSSOP
**Features:
* **Halogen-Free Option Available
* Low-Side Switching
* Low On-Resistance: 5 Ω
* Low Threshold: 0.9 V Typ.
* Fast Switching Speed: 35 ns Typ.
* TrenchFET® Power MOSFETs: 1.5 V Rated
* ESD Protected: 2000 V
**Applications:
**
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
* Battery Operated Systems
* Power Supply Converter Circuits
* Load/Power Switching Cell Phones, Pagers
得捷:
MOSFET 2P-CH 30V 8-TSSOP
漏源极电阻 0.085 Ω
极性 Dual P-Channel, P-Channel
耗散功率 1 W
漏源极电压Vds 30 V
栅源击穿电压 ±20.0 V
连续漏极电流Ids -2.30 A
热阻 125℃/W RθJA
额定功率Max 1 W
下降时间 20 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
长度 4.5 mm
高度 1.05 mm
封装 TSSOP-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
