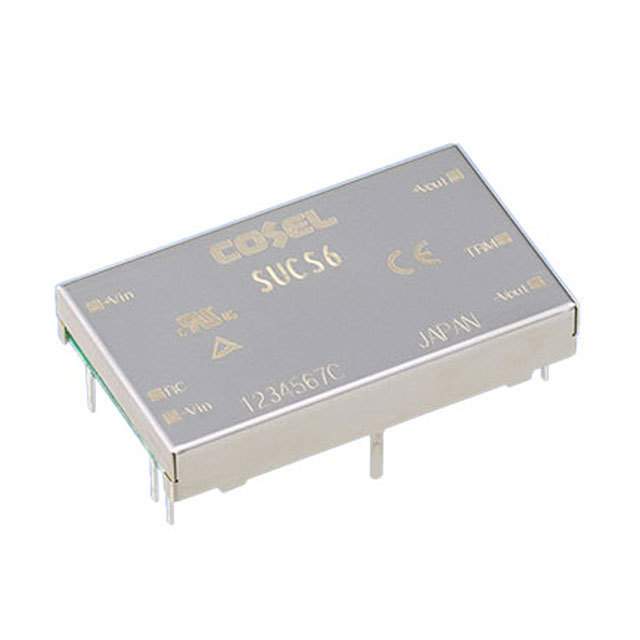

4W 5V to 3.3V 2:1 Regulated DIP DC-DC Converter w Metal Case
**SUCS Series**
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V, Rated Output Wattage: 1.5 - 10W
**Features**
* SMD mounting type and through-hole mounting type
* High efficiency synchronous rectifier circuit
* Built-in overcurrent protection circuits
* Built-in remote ON/OFF SU/SUC 3, 6, 10
* High reliability: not built-in aluminum and tantalum electrolytic capacitor
* SUCS Series have been added coating option May-09
得捷:
DC DC CONVERTER 3.3V
艾睿:
Module DC-DC 5VIN 1-OUT 3.3V 1.2A 3.96W 6-Pin DIP
Allied Electronics:
Isolated DC-DC Converter, Vin 4.5 to 9 V dc, Vout 3.3V dc, I/O isolation 500V ac
Chip1Stop:
Module DC-DC 1-OUT 3.3V 6W 6-Pin DIP
Verical:
Module DC-DC 5VIN 1-OUT 3.3V 1.2A 3.96W 6-Pin DIP
CDI:
4W 5V to 3.3V 2:1 Regulated DIP DC/DC Converter w Metal Case
输出接口数 1
输出电压 3.3 V
输出电流 1.2 A
输出功率 3.96 W
隔离电压 500 V
输入电压Max 9 V
输入电压Min 4.5 V
输出电流Max 1.2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 9V
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 1.28 in
宽度 0.75 in
高度 0.28 in
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
