S2-12PU

CYNERGY3  S2-12PU.  SPST n/o 0.5kV Isolation 12V Coil UL 98Y7654 新

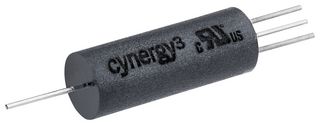

The from Cynergy3 is an UL approved axial style reed relay. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment.

.

Coil voltage is 12VDC

.

Switching power is 70VA, switching voltage is 350VDC/300VAC, switching current DC is 700mA

.

Isolation voltage is 500VDC

.

Rhodium material, pressurised atmosphere

.

Carry current is 2.5A

.

Initial contact resistance is 100mohm

.

Isolation between contact /coil is 1000VDC

.

Operating temperature range from -40°C to +85°C

.

Coil resistance is 1000 ohm
