S2-03PU

CYNERGY3  S2-03PU.  SPST n/o 0.2kV Isolation 3V Coil UL 98Y7650 新

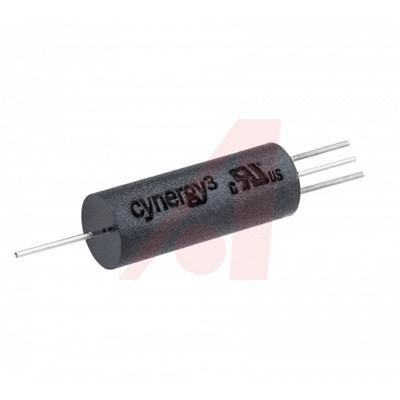

The from Cynergy3 is an UL approved axial style reed relay. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment.

.

Coil voltage is 3VDC

.

Switching power is 10W, switching voltage is 200VDC/140VAC, switching current DC is 250mA

.

Isolation voltage is 200VDC

.

Ruthenium material, pressurised atmosphere

.

Carry current is 1A

.

Initial contact resistance is 100mohm

.

Isolation between contact /coil is 1000VDC

.

Operating temperature range from -40°C to +85°C

.

Coil resistance is 250 ohm
