六路反向器与集电极开路输出 HEX INVERTERS WITH OPEN-COLLECTOR OUTPUTS
description/ordering information
These devices contain six independent inverters. To perform correctly, the open-collector outputs require pullup resistors. These devices may be connected to other open-collector outputs to implement active-low wired-OR or active-high wire-AND functions. Open-collector devices often are used to generate high VOH levels.
• Package Options Include Plastic Small-Outline D, NS, Shrink Small-Outline DB, and Ceramic Flat W Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J DIPs
• Dependable Texas Instrument Quality and Reliability
电源电压DC 4.75V ~ 5.25V
通道数 5
位数 6
传送延迟时间 55.0 ns
电压波节 5.00 V
静态电流 18.0 mA
逻辑门个数 6
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

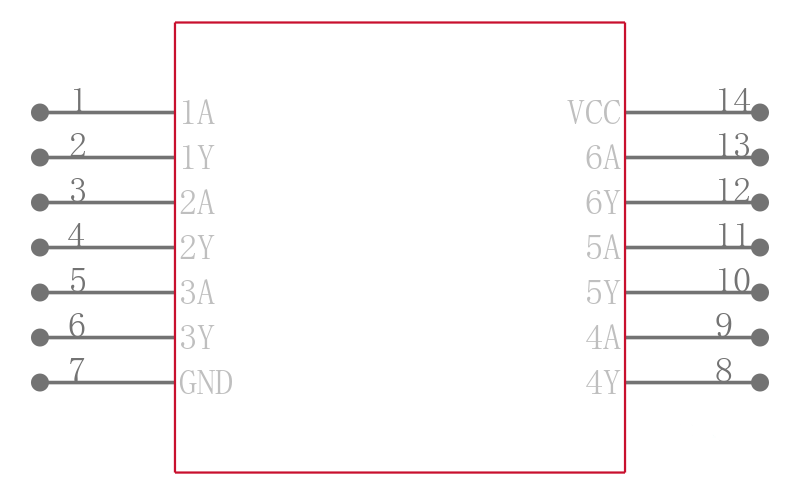

引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN7405D TI 德州仪器 | 当前型号 | 当前型号 |
SN7405DR 德州仪器 | 完全替代 | SN7405D和SN7405DR的区别 |
