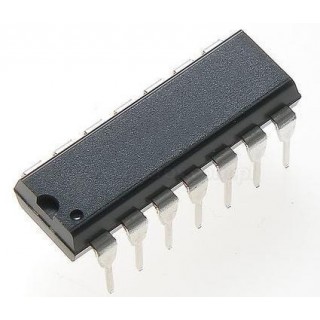

SN74HC14

六路施密特触发反向器

The SNx4HC14 are Schmitt-trigger devices that contain six independent inverters. They perform the Boolean function Y = A in positive logic.

.

Wide Operating Voltage Range of 2 V to 6 V

.

Outputs Can Drive Up to 10 LSTTL Loads

.

Low Power Consumption, 20-µA Max ICC

.

Typical tpd = 11 ns

.

±4-mA Output Drive at 5 V

.

Low Input Current of 1 µA Max

.

On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
