微型断路器 10113603

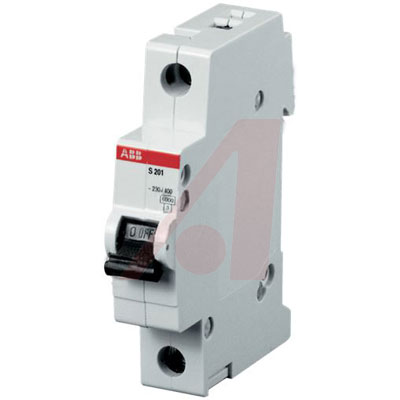

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short-circuit protection. They are available in different characteristics B, C, D, K, Z, configurations 1P, 1P+N, 2P, 3P, 3P+N, 4P, breaking capacities up to 6 ka at 230/400 VAC and rated currents up to 63 A. All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/En 60947-2, UL 1077 and CSA 22.2 No. 235. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
**Features**
* Fast Breaking Time 2.5-3.5 ms
* Finger Safe Terminals
* Suitable for Reverse Feed
* UL 1077 Supplemental Protective Device
* Maximum Operating Voltage UL/CSA: 480Y/277 VAC
