SML-LXR851SIUPGUBC

SML-LXR851SIUPGUBC图片1

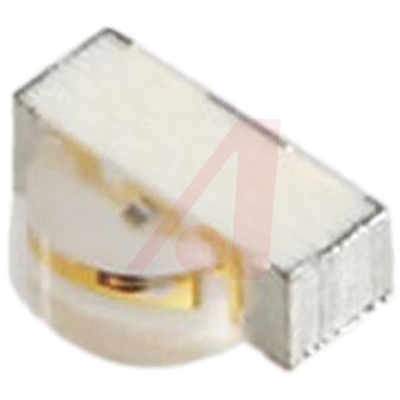

SML-LXR851SIUPGUBC图片2
SML-LXR851SIUPGUBC概述

Led; 1mm x 3mm Pcb Rt Angle Sm Fullcolor Rgb Clear Led

** - OctoLED Range**

The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of Colors and lens finishes.


得捷:
LED RGB CLEAR R/A SMD


艾睿:
LED Tri-Color Blue/Green/Red 470nm/525nm/636nm 3-Pin


Allied Electronics:
LED; 1.0MM X 3.0MM PCB RT ANGLE SM FULLCOLOR RGB CLEAR LED


SML-LXR851SIUPGUBC中文资料参数规格
技术参数

视角 120°

峰值波长 636nm Red,525nm Green,470nm Blue

测试电流 20 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 105 mW

封装参数

安装方式 Surface Mount

引脚数 3

封装 SMD-2

外形尺寸

封装 SMD-2

物理参数

颜色 Red, Green, Blue RGB

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买SML-LXR851SIUPGUBC
型号: SML-LXR851SIUPGUBC
制造商: Lumex 鲁美科思
描述:Led; 1mm x 3mm Pcb Rt Angle Sm Fullcolor Rgb Clear Led
替代型号SML-LXR851SIUPGUBC
型号/品牌 代替类型 替代型号对比

SML-LXR851SIUPGUBC

Lumex 鲁美科思

当前型号

当前型号

12-23A/R6GHBHC-A01/2D

亿光

功能相似

SML-LXR851SIUPGUBC和12-23A/R6GHBHC-A01/2D的区别
