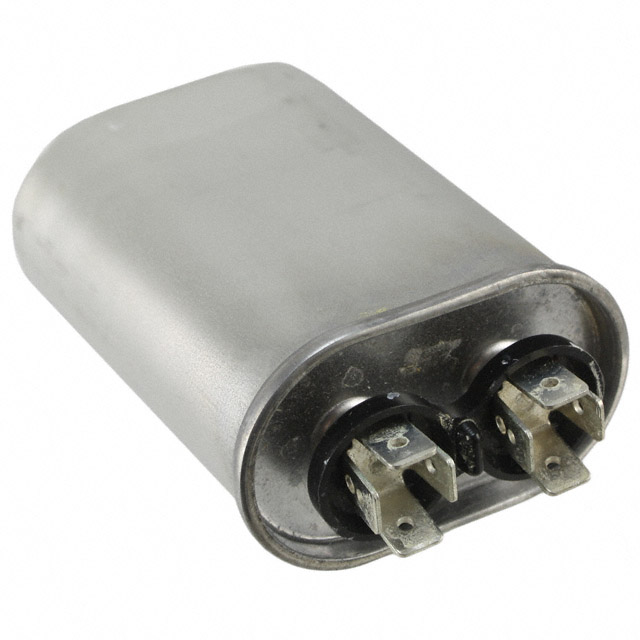

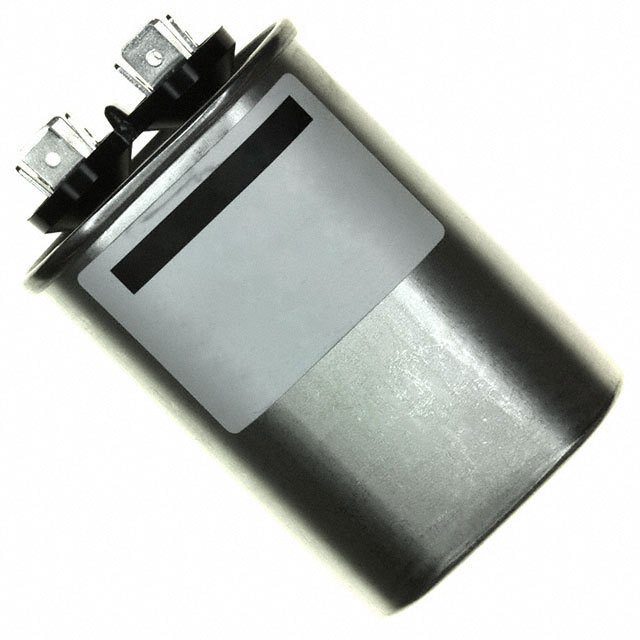

SFA37S12.5K288B-F

Cap Film 12.5uF 370VAC PP 10% 54.86 X 33.27 X 73.15mm Bracket Mount Metal Can 70℃

Type SF, AC rated metallized polypropylene capacitors provide starting torque and power factor correction for split phase motors typically use in refrigeration and air conditioning motor-run applications. Type SF also may be used to provide noise suppression, voltage regulation and line current reduction in power supply applications.

* Capacitance Range: 5 to 120 μF

* Tolerance: 10%

* Voltage Range: 240 to 660 VAC

* Operating Temperature: –40°C to 70°C, 90°C Available

* Operating Frequency: 50-60 Hz

* Voltage Amperes Reactive Terminals: 4 Way 70°C

* Dielectric: Low Loss, Self-Healing Metallized Polypropylene

* Casing: Oval and Round Tin-Plated Steel

* Oil: Non-PCB, Environmentally Safe

* UL Recognized Under E71645

* Meets EIA Standard: EIA-456-A

* CSA File Number 223057
