SP12B-1K

Pot; Cnd Pl; Rest 1KΩ; PCB; 1 Turn; Linear; Pwr-Rtg 0.2W; Shaft Dia 0.125In

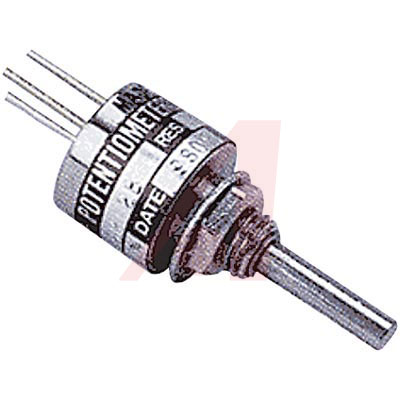

SP12B Conductive Plastic Precision Single Turn Potentiometer, Gold Plated Wire Terminal

All metal housing, nickel plated bushing, stainless steel shaft and gold plated pin terminals.

.

* Electrical Angle:** 300°. ** Mechanical Angle:** 360° continuous. ** Life Shaft** ** Revolutions:** 5,000,000. ** Resistance Tolerance:** 15%. ** Linearity:** 2%. ** Operating Temperature** ** Range:** -55°C to +105°C. ** Power Rating:** 0.2 watts. ** Insulation Resistance:** 1000 Megohms @ 500 VDC. ** Dielectric Strength:** 500 VAC. ** Output Smoothness:** Below 0.1%.** Starting Torque:** 0.3 oz. in. maximum. ** Options:** Tighter tolerances, other resistance values, shaft modifications, sealed construction, center tap.

* Datasheet Available On-Line
