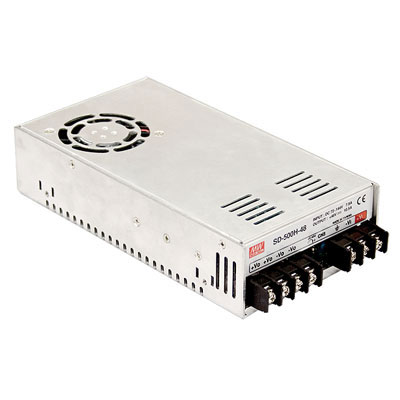

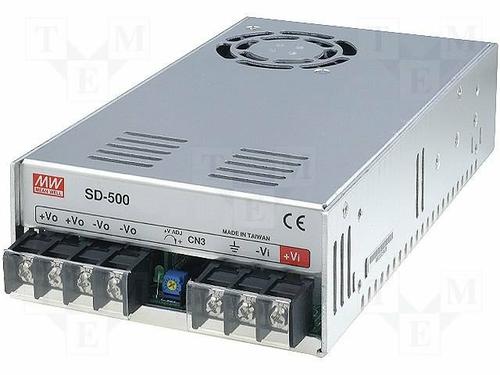

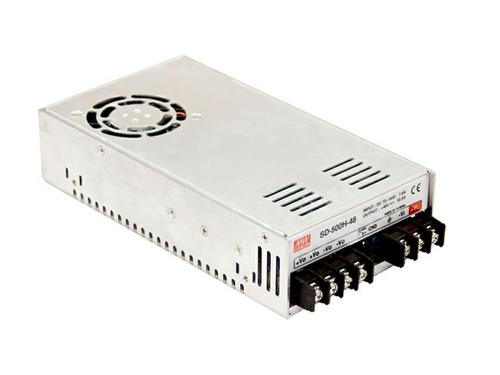

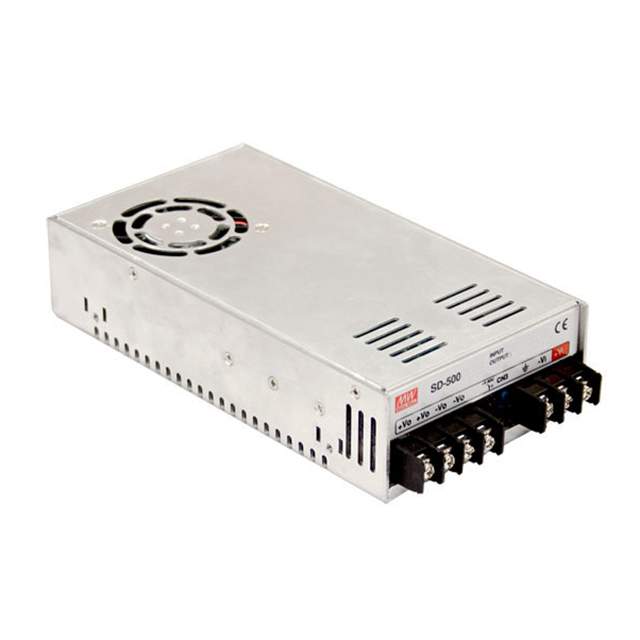

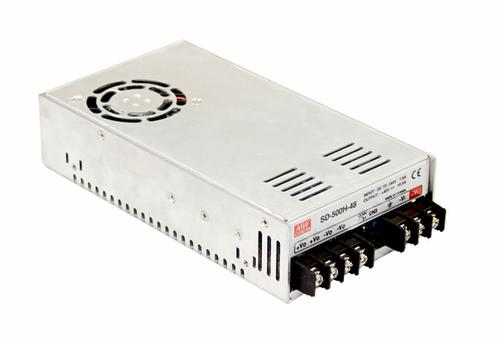

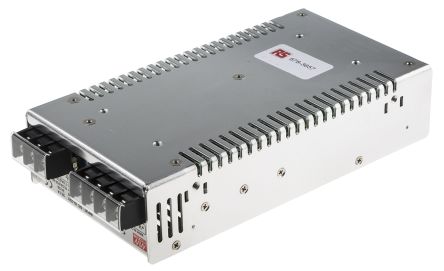

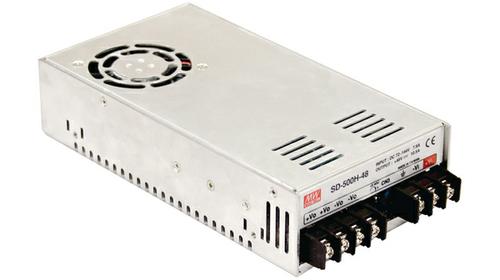

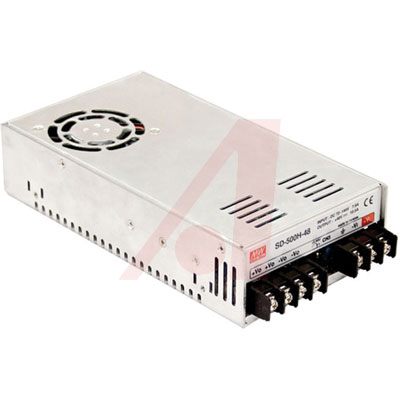

SD-500L-48

SD-500 系列 504 W 单输出 48 V 隔离DC/DC 转换器

SD- 500 系列单输出封装式调节隔离直流到直流转换器

高可靠性

4:1 超宽输入电压范围

调节输出

安装简便 — 螺钉接线端子

可调输出电压

EMC 符合 EN 55022 B 类

内置风扇强制通风冷却

远程开/关控制

远程感应

LED“电源开启”指示灯

短路、过载、过压和过温保护

2kV 输入/输出隔离

### 注

50°C 以上开始下降（45°C 以上开始下降，参见 491-267）。

平均故障间隔时间符合 MIL-HDBK-217F 标准 25°C。

### 标准

IEC 60950-1

### 认可

CB，TUV

欧时:
DC-DC converter,19-72Vin,48Vo 10.5A,540W

得捷:
DC/DC CONVERTER 48V 504W

贸泽:
隔离式DC/DC转换器 19-72Vin 48Vout 504W 10.5A

e络盟:
直流/直流转换器, ITE, 1输出, 504 W, 48 V, 10.5 A

艾睿:
Thanks to Mean-Well USA, Inc.&s;s SD-500L-48 DC to DC power supply, you can step the input power supply to your project as you need it. It has a voltage of 48 V. This part has an input voltage of 19 to 72 V. This part has a minimum operating temperature of -20 °C and a maximum of 60 °C.

Allied Electronics:
Power Supply; DC-DC; 48V@10.5A; 19-72V In; Enclosed; Panel Mnt; Commercial; SD Series

Jameco:
504W Enclosed DC/DC Converter

Chip1Stop:
DC/DC Power Supply Single-OUT 48V 10.5A 504W 13-Pin

TME:
Converter: DC/DC; 504W; Uin:19÷72V; Uout:48VDC; Iout:10.5A; 1150g

MASTER:
DC/DC Enclosed converter - Input 19-72VDC - Output +48Vdc at 10.5A - 2000VDC I/O isolation - 12VDC VSB - 500W - 13Pin - Forced air cooling.

Online Components:
Module DC-DC 48VIN 1-OUT 48V 10.5A 504W 13-Pin

Electro Sonic:
DC/DC Enclosed converter - Input 19-72VDC - Output +48Vdc at 10.5A - 2000VDC I/O isolation - 12VDC VSB - 500W ...

CDI:
DC/DC 500W 48V Enclosed with Fan
