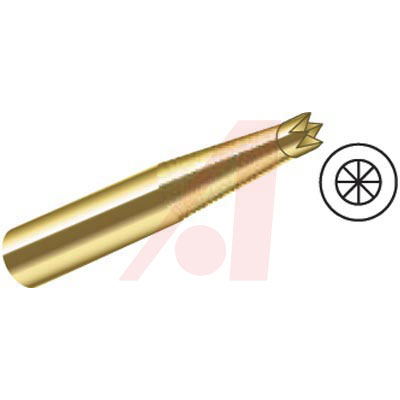

0.05Inch Centerline Spacing Spring Contact Probe 4 Point Tapered Crown Tip
Single Ended Non-Rotating Coax Probes, 3 A Continuous Current Rating
* Minimum center 0.050 "
* Maximum travel 0.1 "
Probe with gold plated plunger material.
Allied Electronics:
0.050 INCH CENTERLINE SPACING SPRING CONTACT PROBE 4 POINT TAPERED CROWN TIP
Brand/Series S Series
Centerline, Spacing 0.050 1.27 In.mm In.mm
Contact Resistance 35 Milliohms Max. Milliohms Max.
Current Rating 3 A A
Diameter, Mounting Hole 0.021 in.
Force, Spring 3.7 Oz. Oz.
Gender Probe
Length, Overall 0.66 In. In.
Material, Barrel Nickel/Silver
Material, Plating Gold Plated Plunger
Material, Plunger Beryllium Copper
Material, Spring Music Wire
Maximum Travel 0.1 In.
Minimum Centers 0.05 In.
Primary Type Probe
Size Size 0
Tip Style UT
Type General Purpose
Working Travel 0.07
RoHS标准 RoHS Compliant
