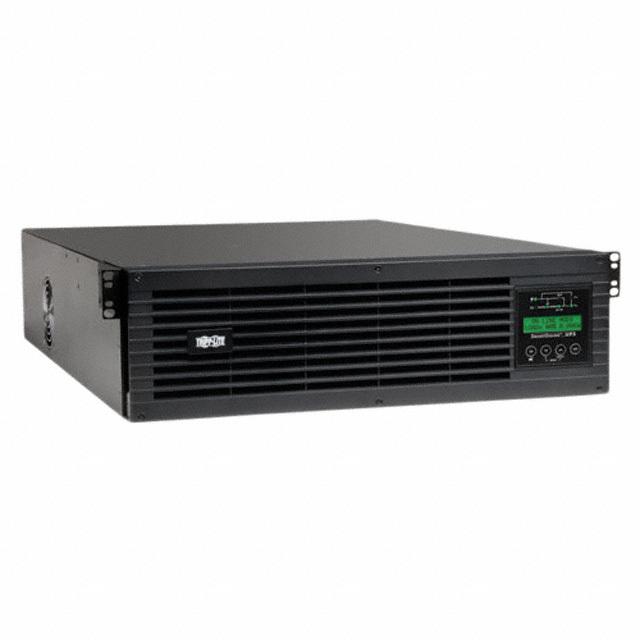

Tripp Lite SU3000RTXLCD3U 3000VA 2700W UPS Smart Online LCD Rackmount 100-120V USB 3URM RT

3000 VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 3U rack mount form factor with an

installed depth of 26 inches. Expandable battery runtime with optional BP72V15-2U limit 1 and BP72V28RT-3U multi-pack compatible external

battery packs. Full time sine wave 110 or 120 V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply UPS

actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously

without using battery power during brownouts to 65 V and overvoltages to 150 V. Highly efficient operation in optional economy mode saves BTU heat

output and energy costs. NEMA L5-30P input plug. NEMA 5-15, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network-grade AC surge

and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous

communications via USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data,

plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown

features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions

via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off EPO interface. Integrated

two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery

charge status LEDs. LED display panel easily rotates for viewing in rack mount or tower configurations. Dataline surge suppression for dialup, DSL

or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post

rack mount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM 2-post rack mount accessories available. Field-replaceable,

hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.

SU3000RTXLCD3U中文资料参数规格
技术参数

额定功率 2.7 kW

输出电压 120 V

输入电压AC Max 127 v

电源电压 120 VAC

输入电压 120 V

封装参数

安装方式 Rack

外形尺寸

长度 660 mm

高度 132 mm

电源线长度 3 ft

物理参数

颜色 Black

重量 33.6 kg

其他

产品生命周期 Active

包装方式 Bulk

制造应用 通用,工业控制

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SU3000RTXLCD3U
型号: SU3000RTXLCD3U
制造商: Tripp-Lite
描述:Tripp Lite SU3000RTXLCD3U 3000VA 2700W UPS Smart Online LCD Rackmount 100-120V USB 3URM RT
