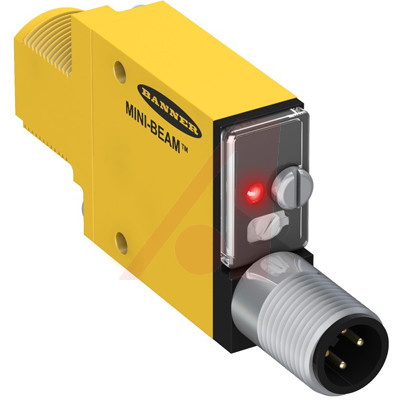

BANNER ENGINEERING SM31RLQD 光电传感器, 30M, 150mA
The MINI-BEAM® is the world"s most popular miniature photoelectric sensor. With millions of units in use worldwide, it has become the benchmark for small photoelectrics. Fact is, there are more MINI-BEAM® solving more sensing applications in more plants worldwide than any other sensor. Because there is a MINI-BEAM® solution for every application, it is also your best single-sensor choice to standardize all of your sensing needs.
** Features**
* Compact, High-Performance Sensors with 18 mm Threaded "Nose" Most Models
* Models for DC or AC/DC "Universal" Operation
* Opposed Mode, Opposed Clear Plastic Detection, Diffuse and Divergent, Polarized and Non-Polarized Retro-Reflective, Convergent, Glass and Plastic Fiber Optic Modes
* Convergent and Fiber Optic Models Offer Infrared or Visible Red Light Source LED; Select a Color Based on Your Color-Differentiation Application Needs
** Specification**
* Operating Temperature: -4°F to 158°F
* Operation Mode: Light or Dark Operate
* Response Time: DC — 1 mSec.; AC/DC — 20 mSec.
* 15-Turn Sensitivity Adjustment
* UL Recognized, CSA Certified
* Meets NEMA Standards 1, 2, 3, 3S, 4, 4X, 5, 12 and 13; IEC IP67
