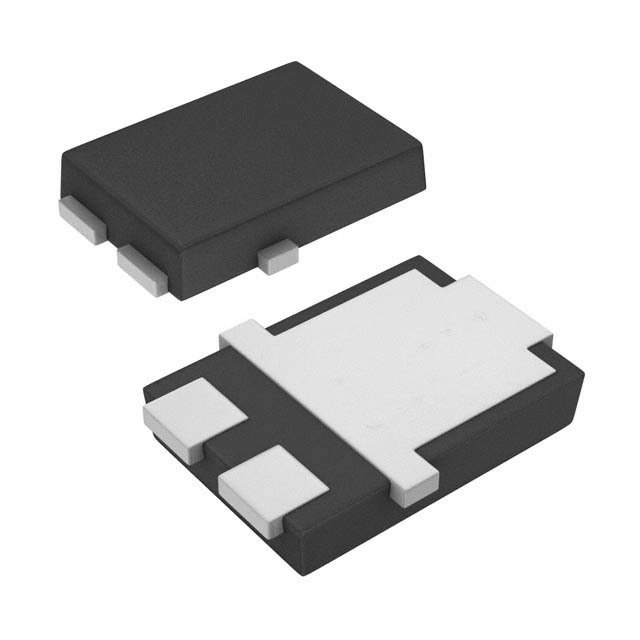

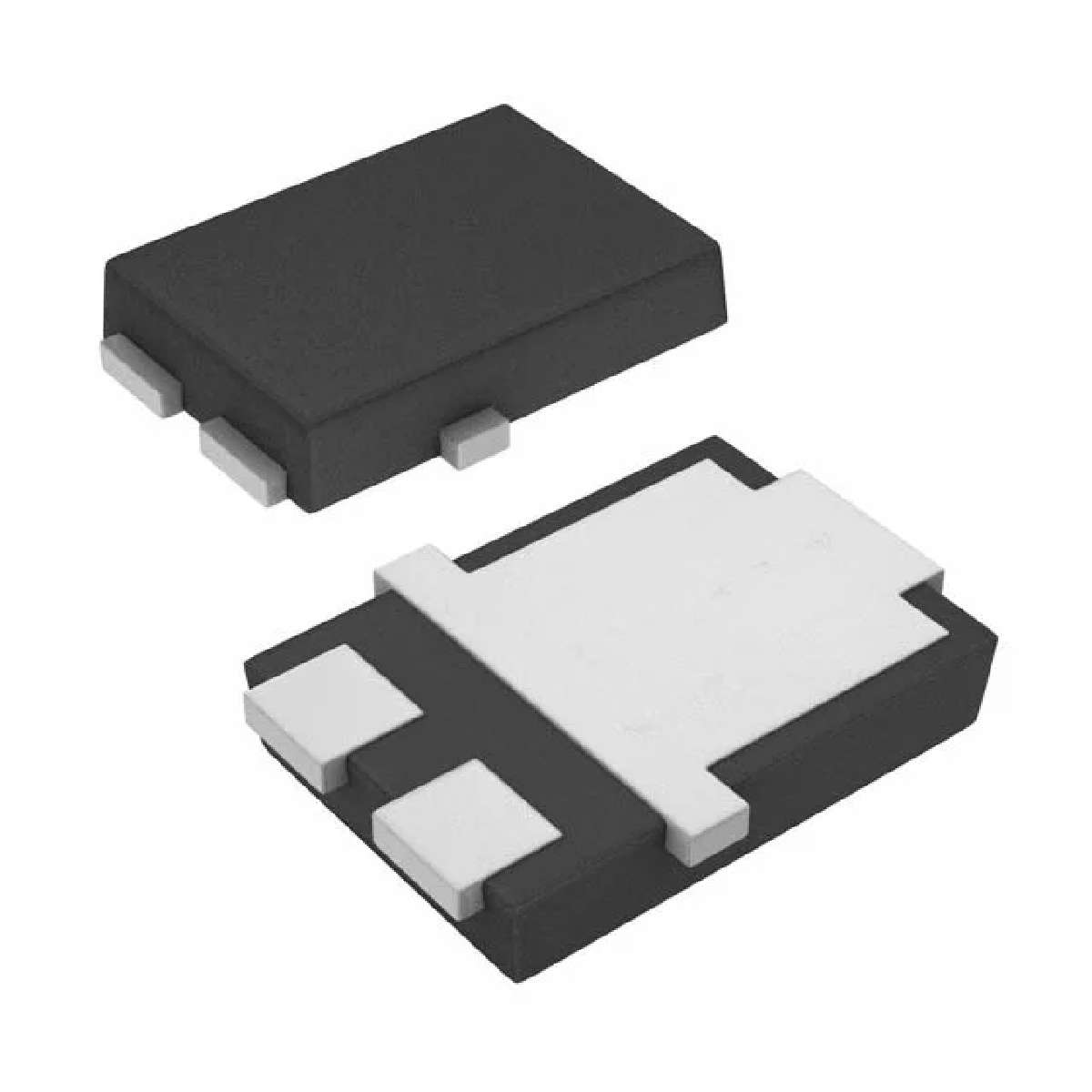

SS3P6L-E3/86A

肖特基二极管与整流器 RECOMMENDED ALT 625-SS3P6L-M3

**Features:

**

* Very Low Profile — Typical Height of 1.1 mm

* Ideal for Automated Placement

* Guardring for Overvoltage Protection

* Low Forward Voltage Drop, Low Power Losses

* High Efficiency

* Low Thermal Resistance

* Meets MSL level 1, per J-STD-020, LF M Maximum Peak of 260°C

* Solder Dip 265°C max. 10 s, Per JESD 22-A111

* Compliant to RoHS Directive 2002/95/EC and in Accordance to WEEE 2002/96/EC

* Halogen-Free According to IEC 61249-2-21 Definition

**Applications:

**For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC-to-DC converters and polarity protection application.
