5V/3.3V LVTTL/LVCMOS-to-DIFFERENTIAL LVPECL TRANSLATOR
DESCRIPTION
The SY10/100EPT20V is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/LVPECL or TTL/CMOS/PECL systems.
The device only requires a single positive supply of 3.3V or 5V - no negative supply is required. The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT20V makes it ideal for those applications where space, performance, and low power are at a premium.
FEATURES
■ 3.3V and 5V power supply options
■ 300ps typical propagation delay
■ Differential LVPECL output
■ ICC Max 20mA
■ PNP LVTTL input for minimal loading
■ Q output will default HIGH with inputs open
■ High bandwidth to 800MHz typical

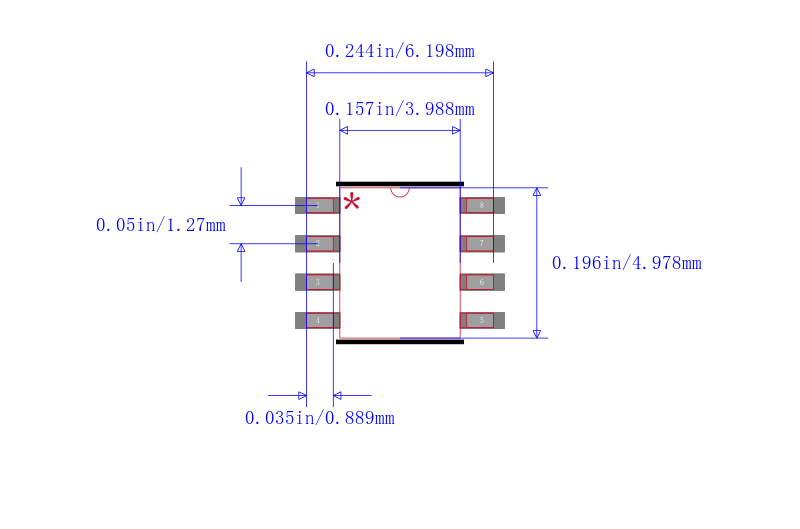

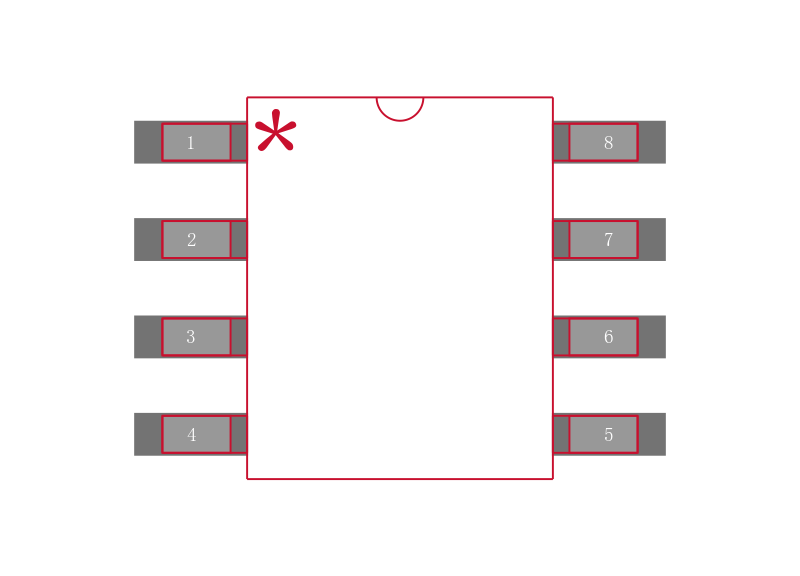

■ Available in 8-pin MSOP and SOIC package
