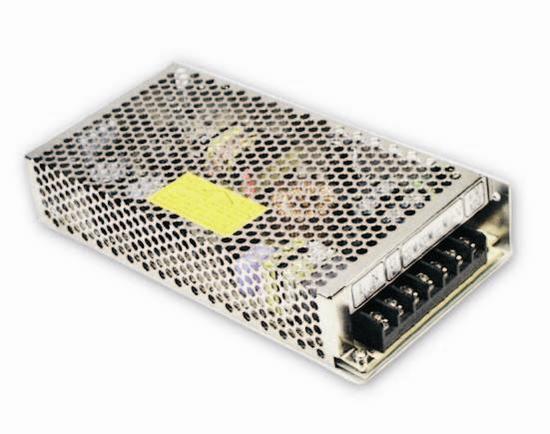

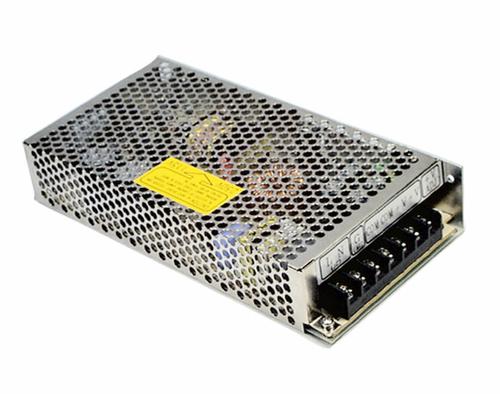

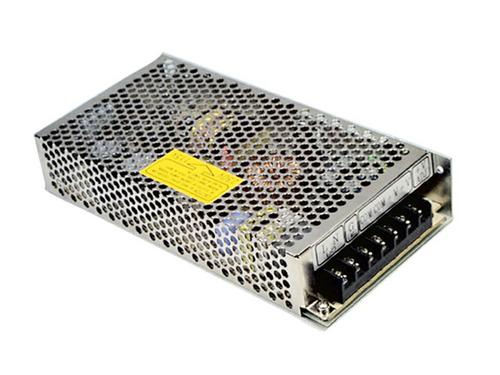

AC-DC Power Supply Single-OUT 5V 20A 100W 7Pin
100W Single Output Switching Power Supply
Features :
AC input range selectable by switch
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 83KHz
2 years warranty
艾睿:
AC/DC Power Supply Single-OUT 5V 20A 100W 7-Pin
Chip1Stop:
AC/DC Power Supply Single-OUT 5V 20A 100W 7-Pin
TME:
Pwr sup.unit: switched-mode; modular; 100W; 5VDC; 199x98x38mm; 20A
MASTER:
AC/DC Power Supply - 1 Output - 5V@20A - 100W
Electro Sonic:
AC/DC Power Supply - 1 Output - 5V@20A - 100W
额定功率 100 W
输出接口数 1
输出电压 5 V
输出电流 20 A
输出功率 100 W
输入电压DC Max 370 V
输入电压DC Min 248 V
输入电压AC Max 264 V
输入电压AC Min 88 V
输出电流Max 20 A
输入电流Min 3.15 A
输出功率Max 100 W
工作温度Max 60 ℃
工作温度Min -10 ℃
安装方式 Rack
引脚数 7
重量 650 g
工作温度 -10℃ ~ 60℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
