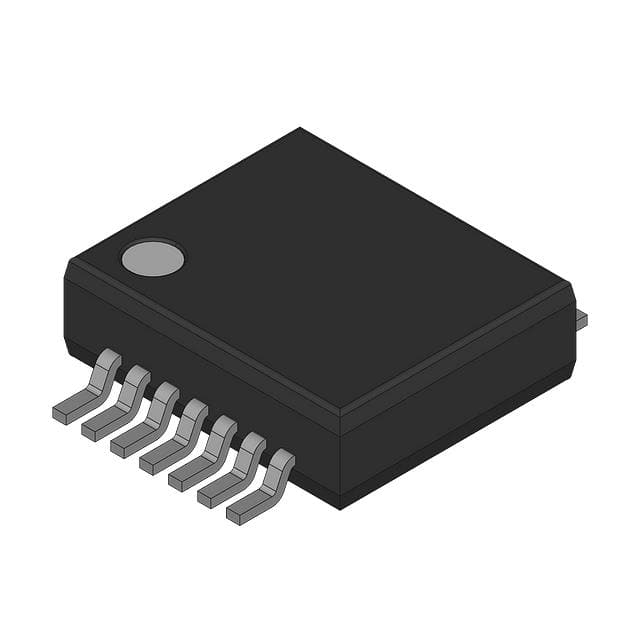

SN74LVC125ADB

四路总线缓冲器闸具有三态输出 QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS

DESCRIPON

This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.

FEATURES

• Operates From 1.65 V to 3.6 V

• Specified From –40°C to 85°C and –40°C to 125°C

• Inputs Accept Voltages to 5.5 V

• Max tpd of 4.8 ns at 3.3 V

• Typical VOLP Output Ground Bounce <0.8 V at VCC = 3.3 V, TA= 25°C

• Typical VOHV Output VOH Undershoot >2 V at VCC = 3.3 V, TA= 25°C

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
