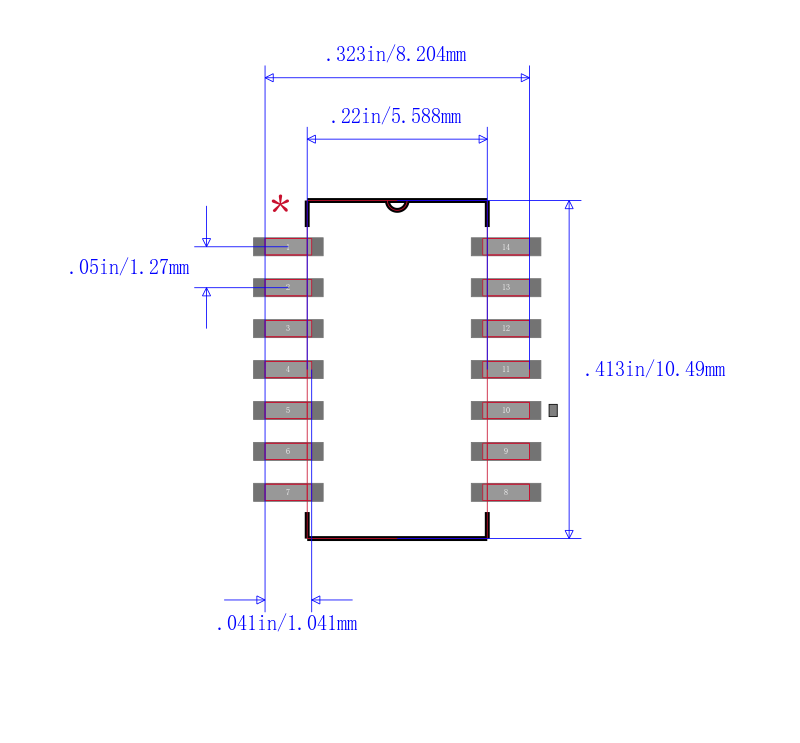

Quadruple 2Input Positive-AND Gates 14-SO -40℃ to 125℃
description/ordering information
These quadruple 2-input positive-AND gates are designed for 2-V to 5.5-V VCC operation. The ’LV08A devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
• 2-V to 5.5-V VCC Operation
• Max tpd of 7 ns at 5 V
• Typical VOLP Output Ground Bounce
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV Output VOH Undershoot
>2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model A114-A
− 200-V Machine Model A115-A
− 1000-V Charged-Device Model C101
