SS5GL2

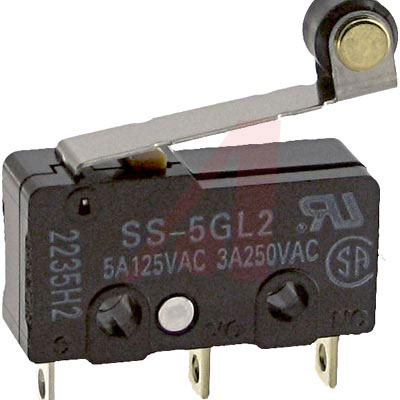

SS5GL2图片1
SS5GL2图片2
SS5GL2图片3
SS5GL2图片4
SS5GL2概述

Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 5A 250VAC 0.49N Screw Mount Solder

Hinge Roller Lever Actuator Type, 5 A, Subminiature Basic Switches

Three load switching capacities to choose from in a compact snap action switch. Long service life, high vibration and shock resistance, and easy installation. Solder terminals.
.
* Body Size:** 19.8 × 10.2 × 6.4 mm 0.78" × 0.40" × 0.25"** .** ** Heavy-Duty Load:** rivet contacts non-inductive, resistive 10.1 A @ 125 VAC/250 VAC, 10.1 A @ 8 VDC/14 VDC, 4 A @ 30 VDC; 20 A max. inrush current NC, 15 A max. inrush current NO. ** Standard Load:** Rivet contacts non-inductive, resistive; 5 A @ 125 VAC, 3 A @ 250 VAC, 5 A @ 8 VDC/14 VDC, 4 A 30 VDC; 20 A max. inrush current NC, 10 A max. inrush current NO. ** Microvoltage/Current Load:** Bifurcated crossbar contacts non-inductive, resistive; 0.1 A @ 125 VAC/ 30 VDC; 1 A max. inrush current.

* Economical, Subminiature Snap Action Switch Offers Long Service Life 30 Million Operations Minimum, Mechanical

* All Models Are Free from Overtravel Restrictions, Permit Easy Setting

* Wide Switching Capacity Range from Microvoltage/Current Loads 1 mA at 5 VDC to High-Capacity Loads 10.1 A at 250 VAC

* Standard Operating Force, Low Force or Super-Low Force Models Available

* RoHS Compliant

SS5GL2中文资料参数规格
技术参数

接触器类型 Roller Lever

额定电流 5 A

触点类型 SPDT

额定电流Max 5 A

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压 125 VAC

封装参数

安装方式 Screw, Solder, Panel

外形尺寸

长度 19.8 mm

宽度 6.4 mm

高度 10.2 mm

物理参数

触点材质 Silver

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS-conform

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

在线购买SS5GL2
型号: SS5GL2
制造商: Omron 欧姆龙
描述:Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 5A 250VAC 0.49N Screw Mount Solder
替代型号SS5GL2
型号/品牌 代替类型 替代型号对比

SS5GL2

Omron 欧姆龙

当前型号

当前型号

111SM2-T2

霍尼韦尔

类似代替

SS5GL2和111SM2-T2的区别

311SM706-H58

霍尼韦尔

功能相似

SS5GL2和311SM706-H58的区别
